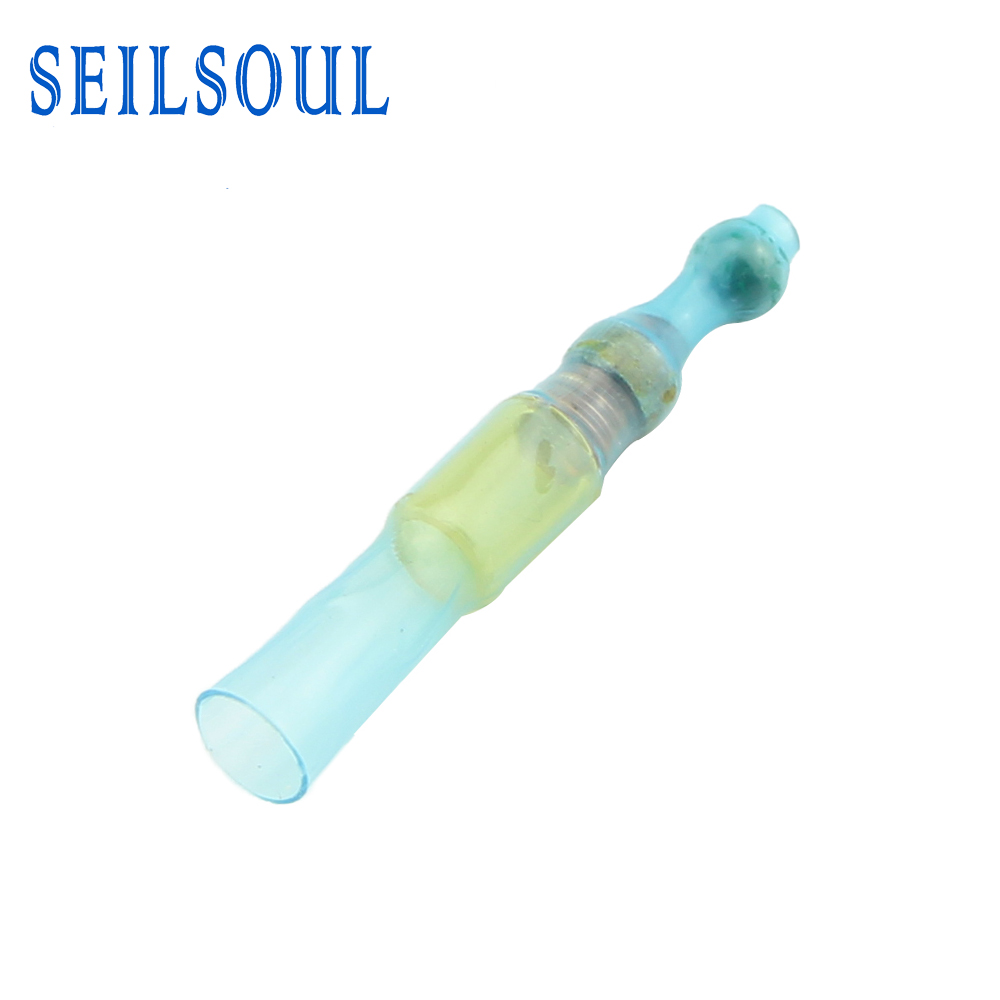

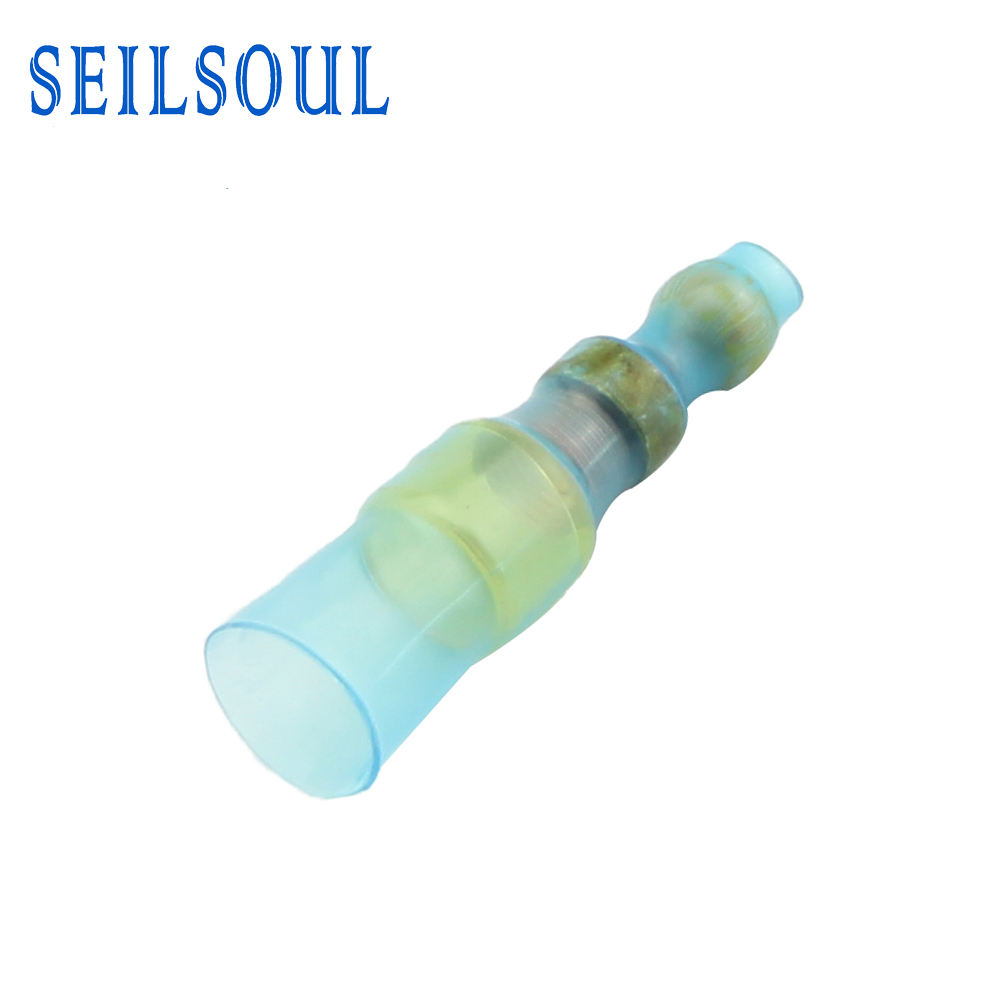

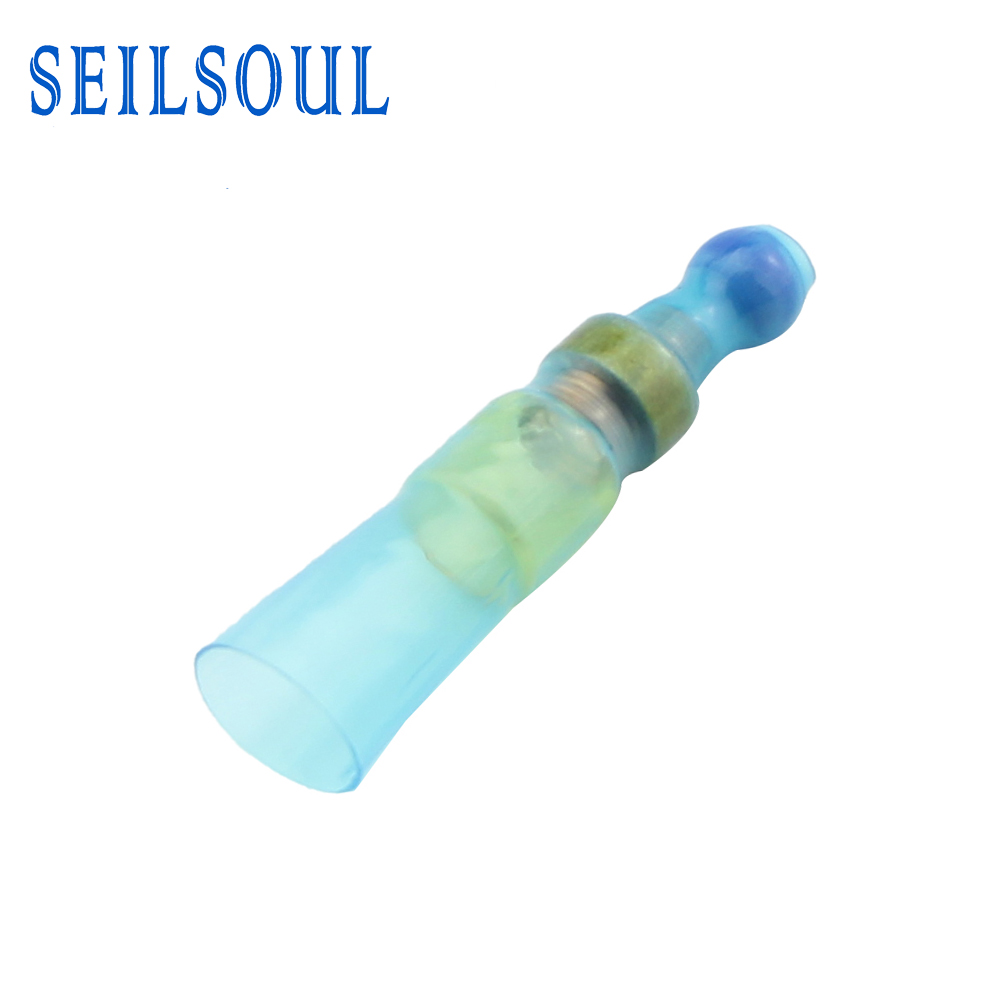

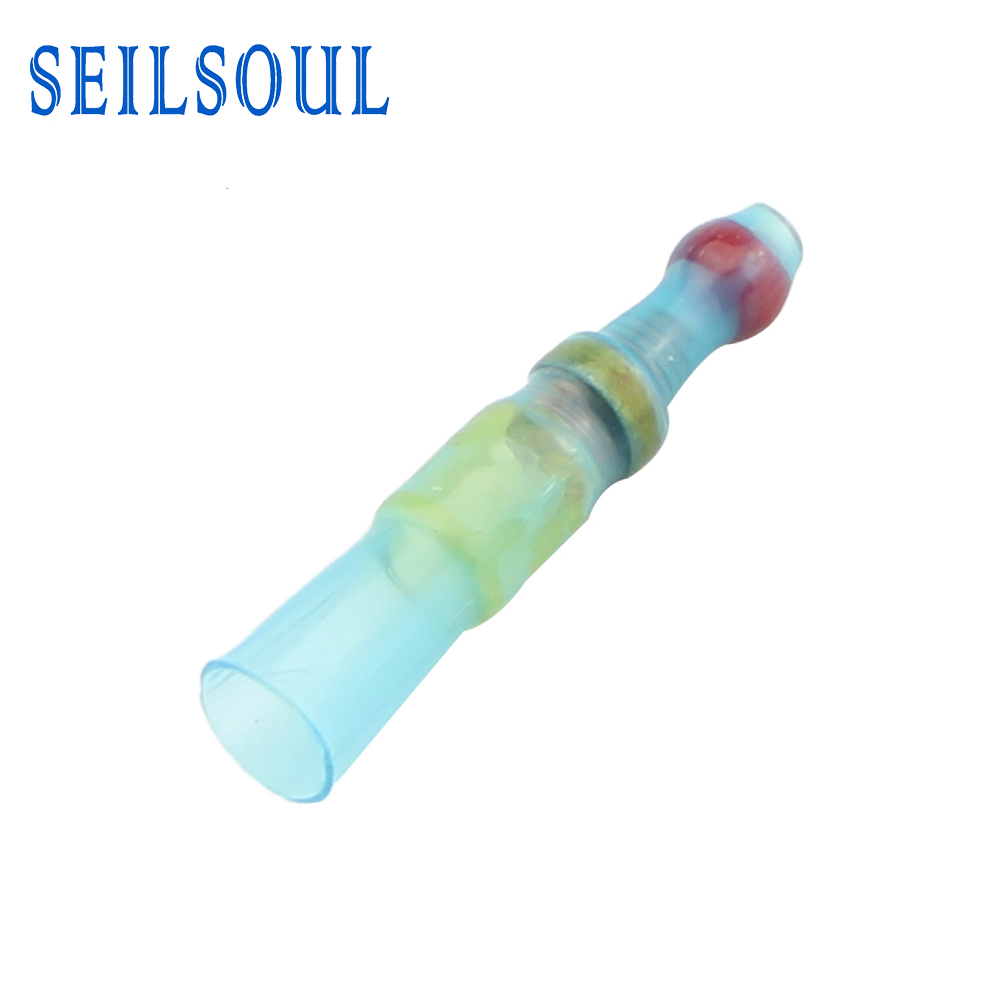

Application: SolderGrip heat-shrinkable solder-type closed-end connector is designed for electrical termination of multiple-wire combinations. It provides reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors. The unique combination of wire fixturing and controlled soldering technology provides dependable electrical termination of multiple wire combinations. SolderGrip terminators consist of a heat-shrinkable thermoplastic sleeve containing a spiral-wound copper insert. The insert is fitted with a pre-fluxed solder band. Shrink closed-end connectors can replace wire nuts in environments where need to be sealed. Color coded glass ball identifies the proper wire sizes to use. Characteristics: ●Shrink ratio: 2:1 ●Waterproof for wiring splices ●Transparent sleeve provides visual inspection ●High elasticity assures steady performance ●Easy control of soldering process ●Operating temperature: -55℃~150℃ ●Minimum shrink temperature: 200℃ |

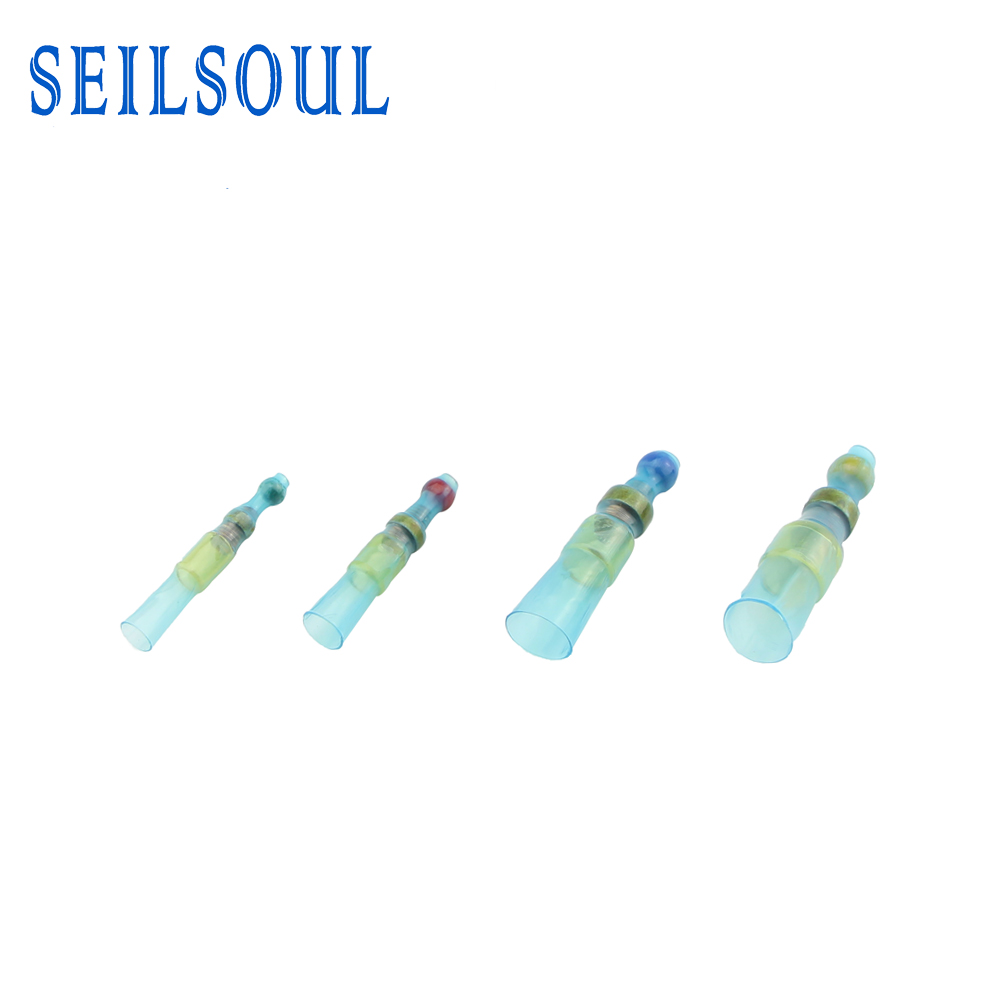

Property | Specification Requirement | Test Method | Typical Value | |||||
Tensile Strength | 4.5N or more than outgoing line | NAS1745 | passed | |||||
Corrosion Resistance (35℃ 96hrs; 5%NaCl) | ≤2.5MV | NAS1745 | passed | |||||
Bronze Disease (121℃ 16hrs) | anticorrosion | NAS1745 | passed | |||||
Flame Retardant | Self Extinguish in 5S | UL224 | passed | |||||
Liquid Resistance (25℃ 24hrs;soaking) | ≥20MV | NAS1745 | ≥25MV | |||||
Protection Type | - | IEC 60529 | IP67 | |||||
Voltage Drop | ≤2MV | NAS1745 | passed | |||||
Aging Strength (-65℃-155℃ five cycle circulations) | ≤2.5MV | NAS1745 | passed | |||||
Vibration Resistance (70 to 2000HZ in 0.06″DA or 15G rush hours (1 hour in each direction) ) | ≤2.5MV | NAS1745 | passed | |||||
Dielectric Strength | ≥30kV/mm | ASTM D2671 | ≥32kV/mm |
Item NO. | Copper Cross Section mm2 | Dimension | Color | |||
Min | Max | ΦA | L | B | ||

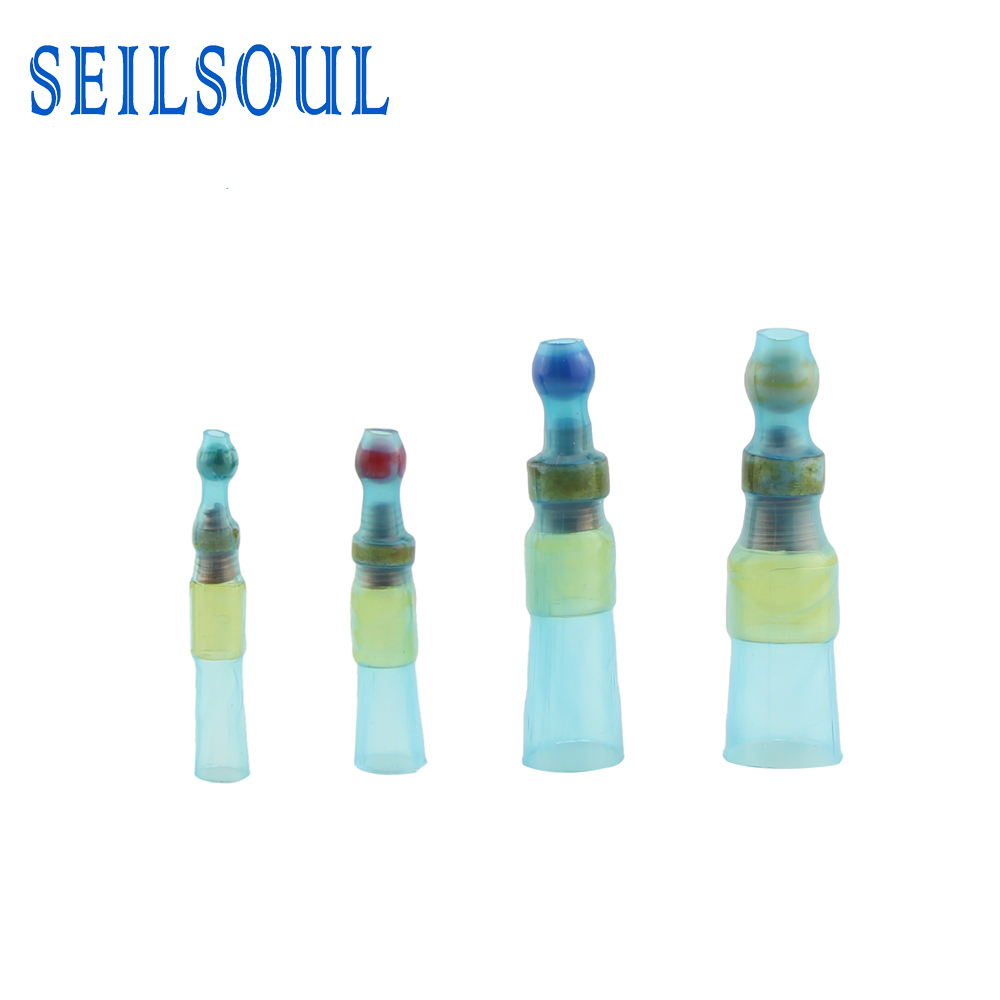

HSWN-0.5 | 0.7 | 2.4 | 3.6 | 38 | 26 | ● green |
HSWN-1.25 | 2.0 | 4.0 | 5.0 | 38 | 26 | ● red |
HSWN-2.5 | 3.5 | 8 | 7.5 | 45 | 30 | ● blue |
HSWN-5.5 | 7.5 | 12 | 9.4 | 45 | 30 | ● yellow |

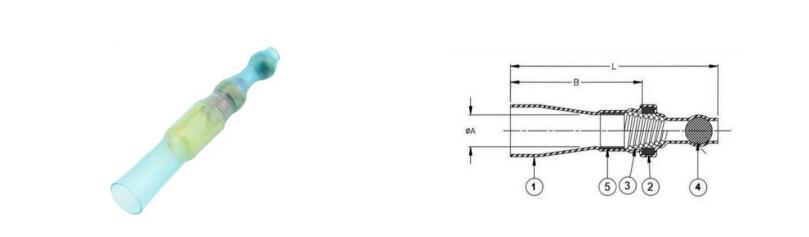

●Item 1: Insulation Sleeve: Heat shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride
●Item 2: Solder Ring with flux
●Item 3: Conical Spring (Square copper wire)
●Item 4: End Closure Ball (Tinted glass, color see table)
●Item 5: Sealing Insert (Glue rings)
Application: SolderGrip heat-shrinkable solder-type closed-end connector is designed for electrical termination of multiple-wire combinations. It provides reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors. The unique combination of wire fixturing and controlled soldering technology provides dependable electrical termination of multiple wire combinations. SolderGrip terminators consist of a heat-shrinkable thermoplastic sleeve containing a spiral-wound copper insert. The insert is fitted with a pre-fluxed solder band. Shrink closed-end connectors can replace wire nuts in environments where need to be sealed. Color coded glass ball identifies the proper wire sizes to use. Characteristics: ●Shrink ratio: 2:1 ●Waterproof for wiring splices ●Transparent sleeve provides visual inspection ●High elasticity assures steady performance ●Easy control of soldering process ●Operating temperature: -55℃~150℃ ●Minimum shrink temperature: 200℃ |
Property | Specification Requirement | Test Method | Typical Value | |||||
Tensile Strength | 4.5N or more than outgoing line | NAS1745 | passed | |||||
Corrosion Resistance (35℃ 96hrs; 5%NaCl) | ≤2.5MV | NAS1745 | passed | |||||
Bronze Disease (121℃ 16hrs) | anticorrosion | NAS1745 | passed | |||||
Flame Retardant | Self Extinguish in 5S | UL224 | passed | |||||
Liquid Resistance (25℃ 24hrs;soaking) | ≥20MV | NAS1745 | ≥25MV | |||||
Protection Type | - | IEC 60529 | IP67 | |||||
Voltage Drop | ≤2MV | NAS1745 | passed | |||||
Aging Strength (-65℃-155℃ five cycle circulations) | ≤2.5MV | NAS1745 | passed | |||||
Vibration Resistance (70 to 2000HZ in 0.06″DA or 15G rush hours (1 hour in each direction) ) | ≤2.5MV | NAS1745 | passed | |||||
Dielectric Strength | ≥30kV/mm | ASTM D2671 | ≥32kV/mm |
Item NO. | Copper Cross Section mm2 | Dimension | Color | |||
Min | Max | ΦA | L | B | ||
HSWN-0.5 | 0.7 | 2.4 | 3.6 | 38 | 26 | ● green |
HSWN-1.25 | 2.0 | 4.0 | 5.0 | 38 | 26 | ● red |
HSWN-2.5 | 3.5 | 8 | 7.5 | 45 | 30 | ● blue |
HSWN-5.5 | 7.5 | 12 | 9.4 | 45 | 30 | ● yellow |
●Item 1: Insulation Sleeve: Heat shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride
●Item 2: Solder Ring with flux
●Item 3: Conical Spring (Square copper wire)
●Item 4: End Closure Ball (Tinted glass, color see table)
●Item 5: Sealing Insert (Glue rings)
