BHTS
Seilsoul

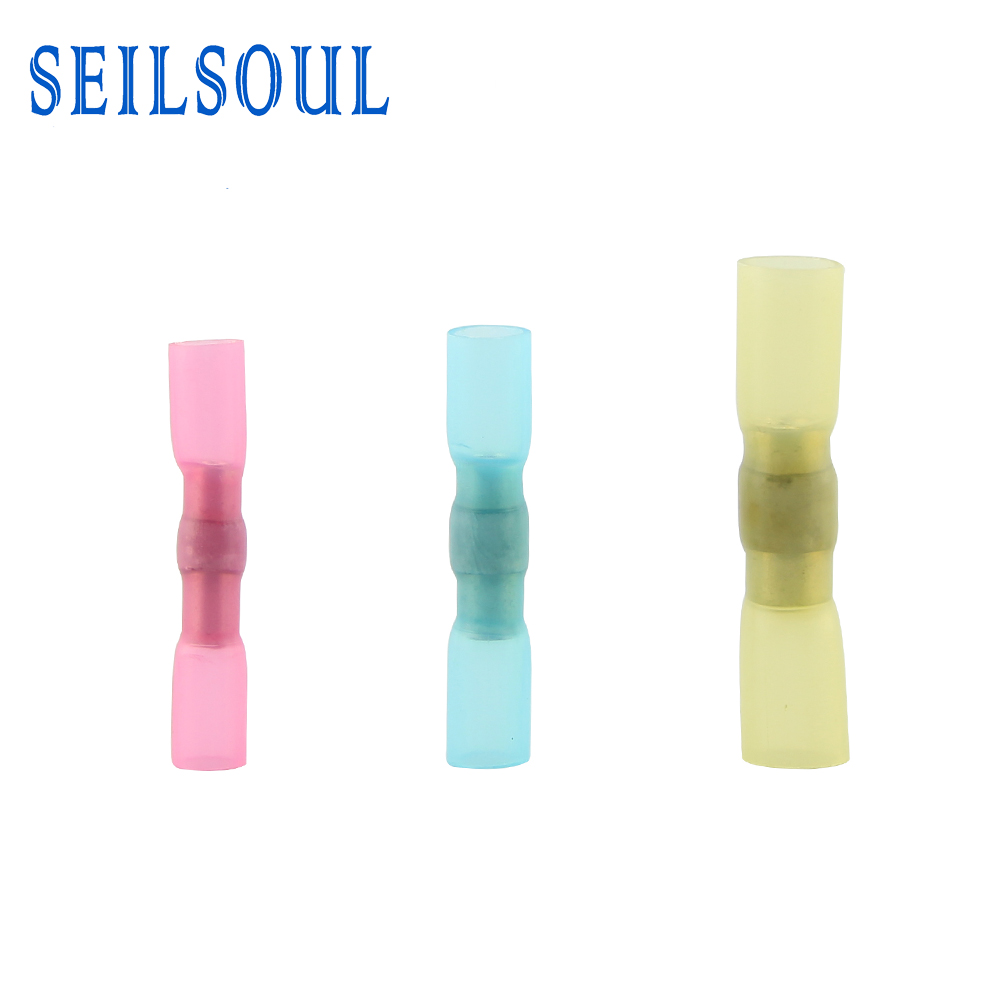

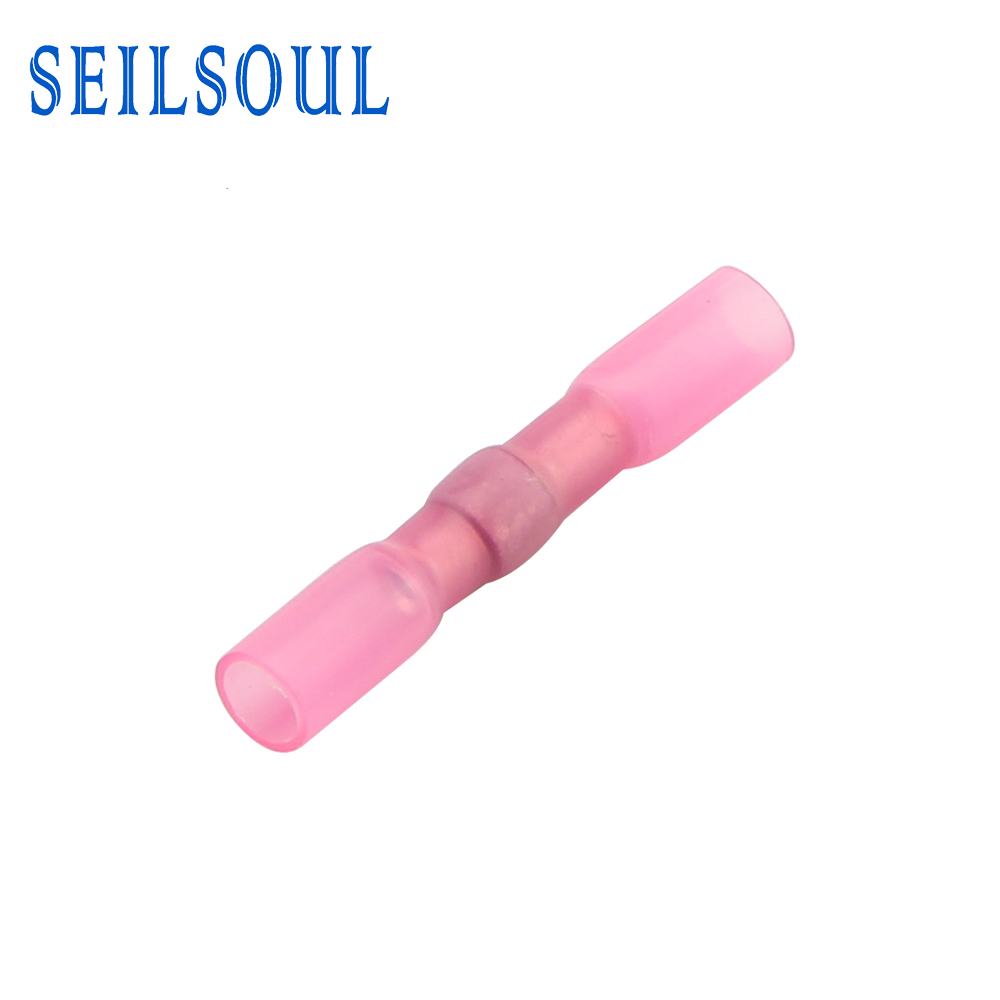

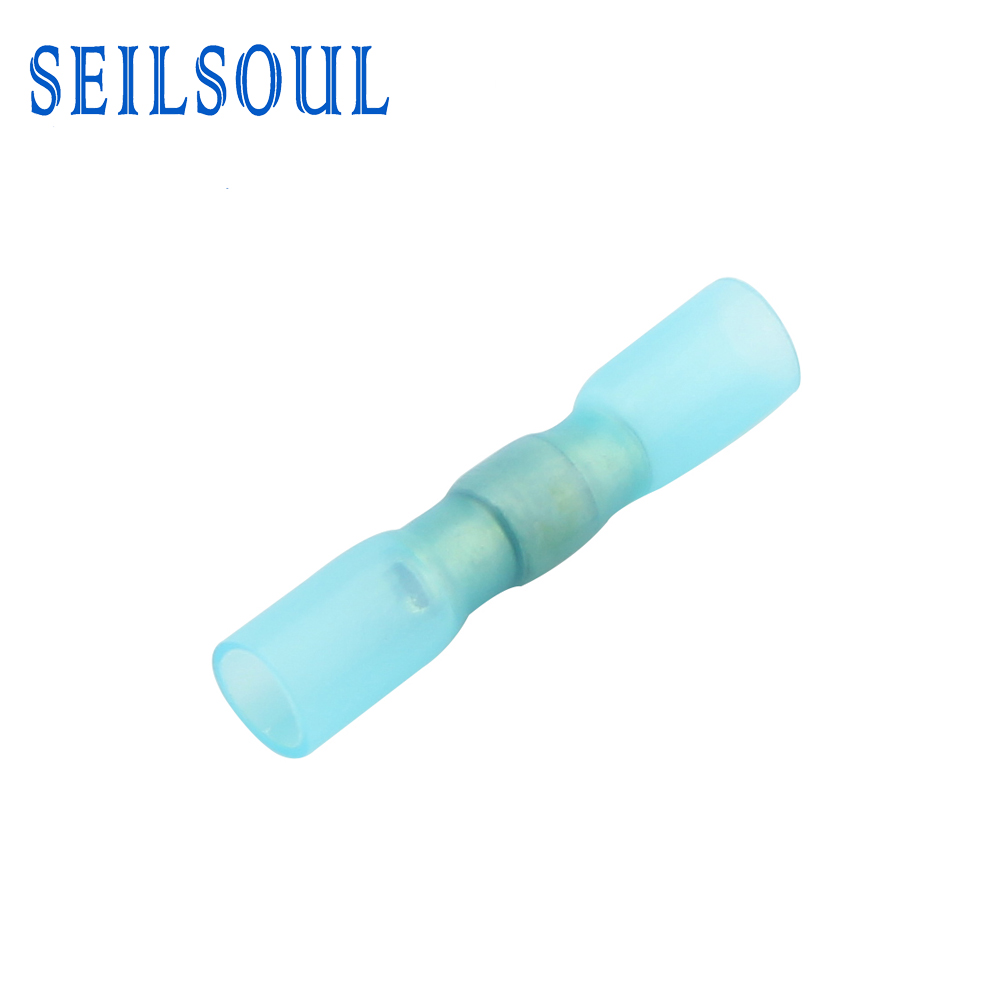

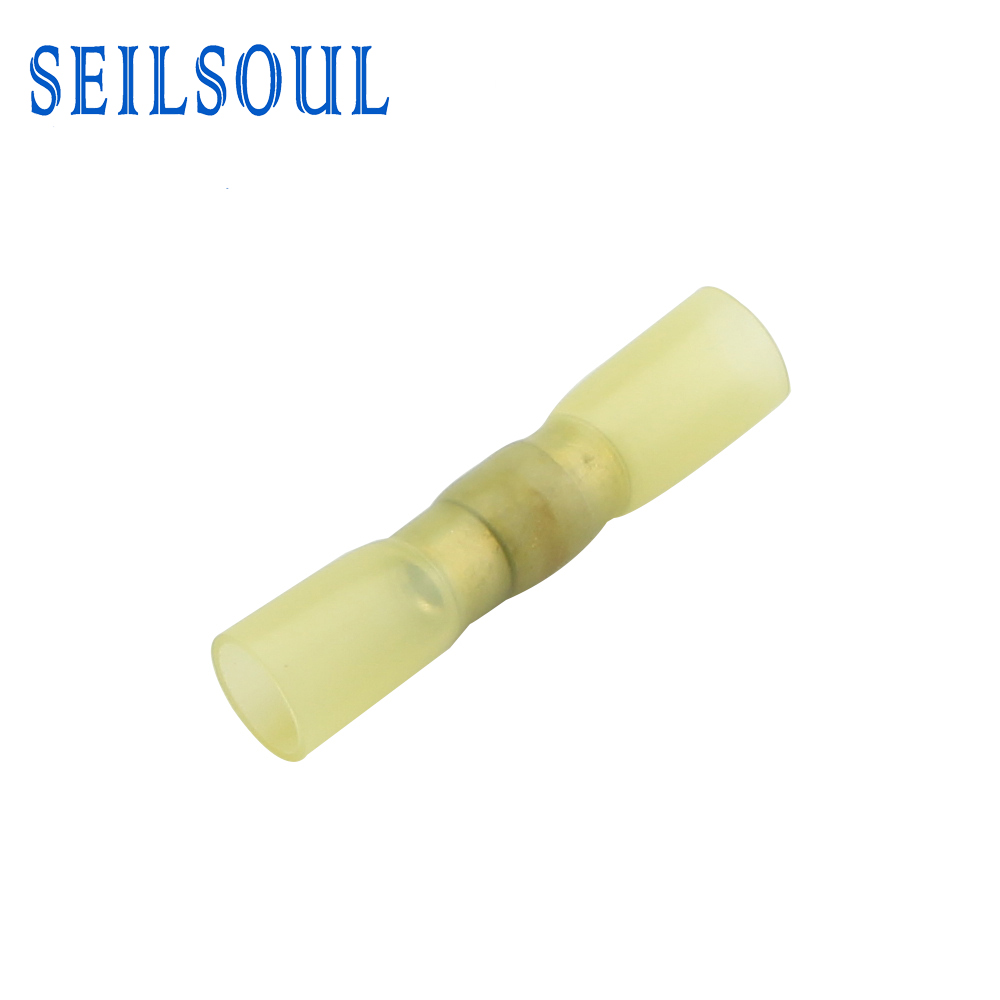

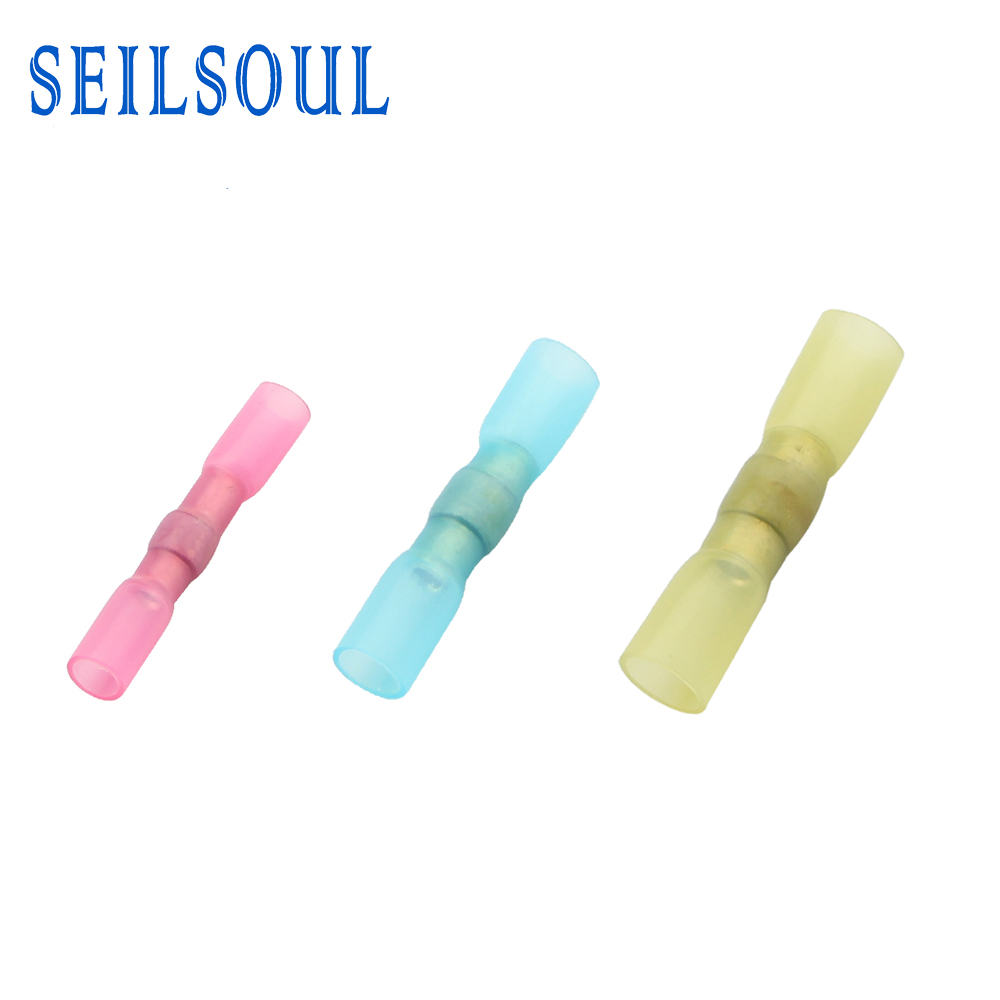

Application: BHTS is heat shrink sealed crimp with solder butt connector. With crimping and soldering, it provides super strength, conductivity, and maximum durability. Where there is no margin for error, choose heat shrink sealed crimp with solder connectors...the ultimate connectors. Characteristics: ●Shrink ratio: 3:1 ●Excellent conductivity property ●High transparency, High tensile strength ●Excellent stretch and mechanical damage resistance ●High elasticity assures steady performance ●Water proof and moisture resistance ●Operating temperature: -55℃-125℃ ●Minimum shrink temperature: 180℃ Materials ●Insulation: Polyolefin ●Terminal body: Copper ●Solder ring with flux |
Property | Specification Requirement | Test Method | Typical Value | ||||||
Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 17.2Mpa | ||||||
Elongation at break (Room temp.) | Min. 200% | UL224 | 280% | ||||||
Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 11.5Mpa | ||||||
Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 200% | ||||||
Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass | ||||||
Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | Pass | ||||||
Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. | ||||||
Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass | ||||||
Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass | ||||||
Maximum secant modulus (2%) | 173Mpa | UL224 | Pass | ||||||
Volume resistivity | Min. 1014Ω·m | UL224 | Pass | ||||||
Heat shock (250℃ 4hrs) | No crack | ASTM D2671 | Pass | ||||||
Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |

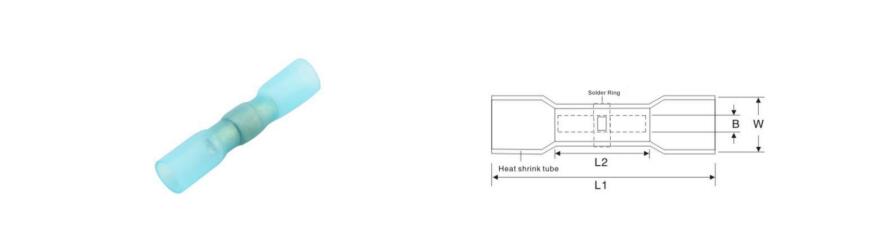

Item NO. | A.W.G | mm² | Dimension | E | Thickness | Color | |||
B | L2 | W | L1 | ||||||
BHTS-0.5 | 26-24 | 0.25-0.5 | 1.0 | 12 | 3 | 26 | 3.0 | 0.5mm | ● yellow |
BHTS-1.25 | 22-18 | 0.5-1.0 | 1.7 | 15 | 4.8 | 36.5 | 4.2 | 0.8mm | ● red |
BHTS-2.5 | 16-14 | 1.5-2.5 | 2.4 | 15 | 5.8 | 36.5 | 5.5 | 0.8mm | ● blue |
BHTS-5.5 | 12--10 | 4.0-6.0 | 3.6 | 15 | 6.8 | 41.5 | 7.0 | 1.0mm | ● yellow |
Application: BHTS is heat shrink sealed crimp with solder butt connector. With crimping and soldering, it provides super strength, conductivity, and maximum durability. Where there is no margin for error, choose heat shrink sealed crimp with solder connectors...the ultimate connectors. Characteristics: ●Shrink ratio: 3:1 ●Excellent conductivity property ●High transparency, High tensile strength ●Excellent stretch and mechanical damage resistance ●High elasticity assures steady performance ●Water proof and moisture resistance ●Operating temperature: -55℃-125℃ ●Minimum shrink temperature: 180℃ Materials ●Insulation: Polyolefin ●Terminal body: Copper ●Solder ring with flux |
Property | Specification Requirement | Test Method | Typical Value | ||||||
Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 17.2Mpa | ||||||
Elongation at break (Room temp.) | Min. 200% | UL224 | 280% | ||||||
Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 11.5Mpa | ||||||
Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 200% | ||||||
Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass | ||||||
Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | Pass | ||||||
Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. | ||||||
Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass | ||||||
Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass | ||||||
Maximum secant modulus (2%) | 173Mpa | UL224 | Pass | ||||||
Volume resistivity | Min. 1014Ω·m | UL224 | Pass | ||||||
Heat shock (250℃ 4hrs) | No crack | ASTM D2671 | Pass | ||||||
Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |
Item NO. | A.W.G | mm² | Dimension | E | Thickness | Color | |||
B | L2 | W | L1 | ||||||
BHTS-0.5 | 26-24 | 0.25-0.5 | 1.0 | 12 | 3 | 26 | 3.0 | 0.5mm | ● yellow |
BHTS-1.25 | 22-18 | 0.5-1.0 | 1.7 | 15 | 4.8 | 36.5 | 4.2 | 0.8mm | ● red |
BHTS-2.5 | 16-14 | 1.5-2.5 | 2.4 | 15 | 5.8 | 36.5 | 5.5 | 0.8mm | ● blue |
BHTS-5.5 | 12--10 | 4.0-6.0 | 3.6 | 15 | 6.8 | 41.5 | 7.0 | 1.0mm | ● yellow |
