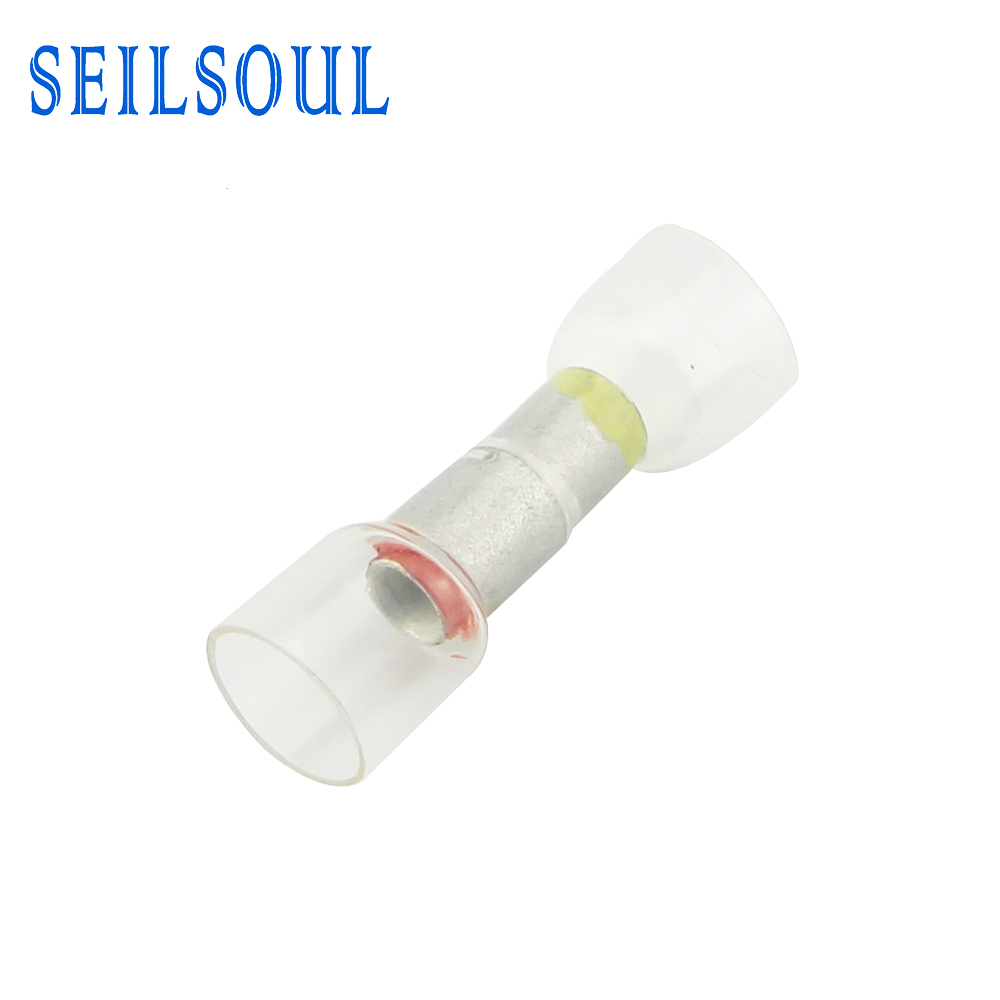

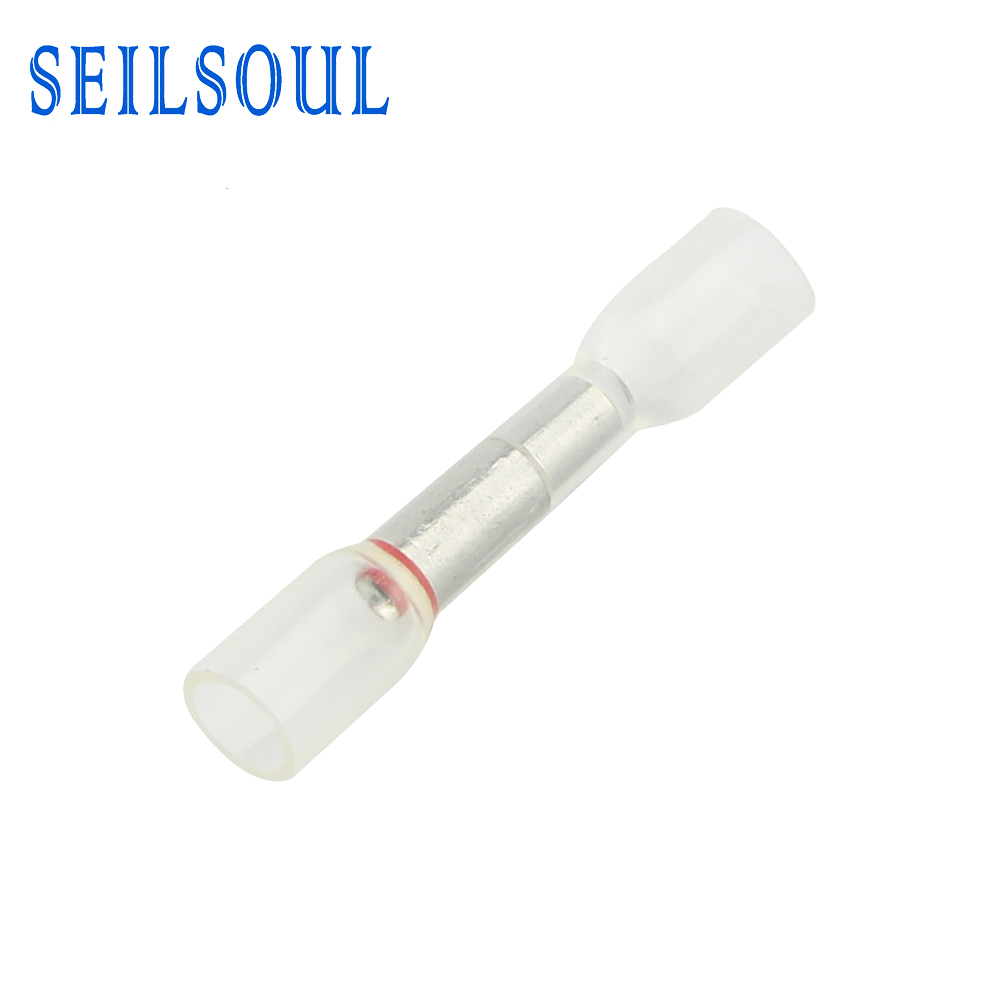

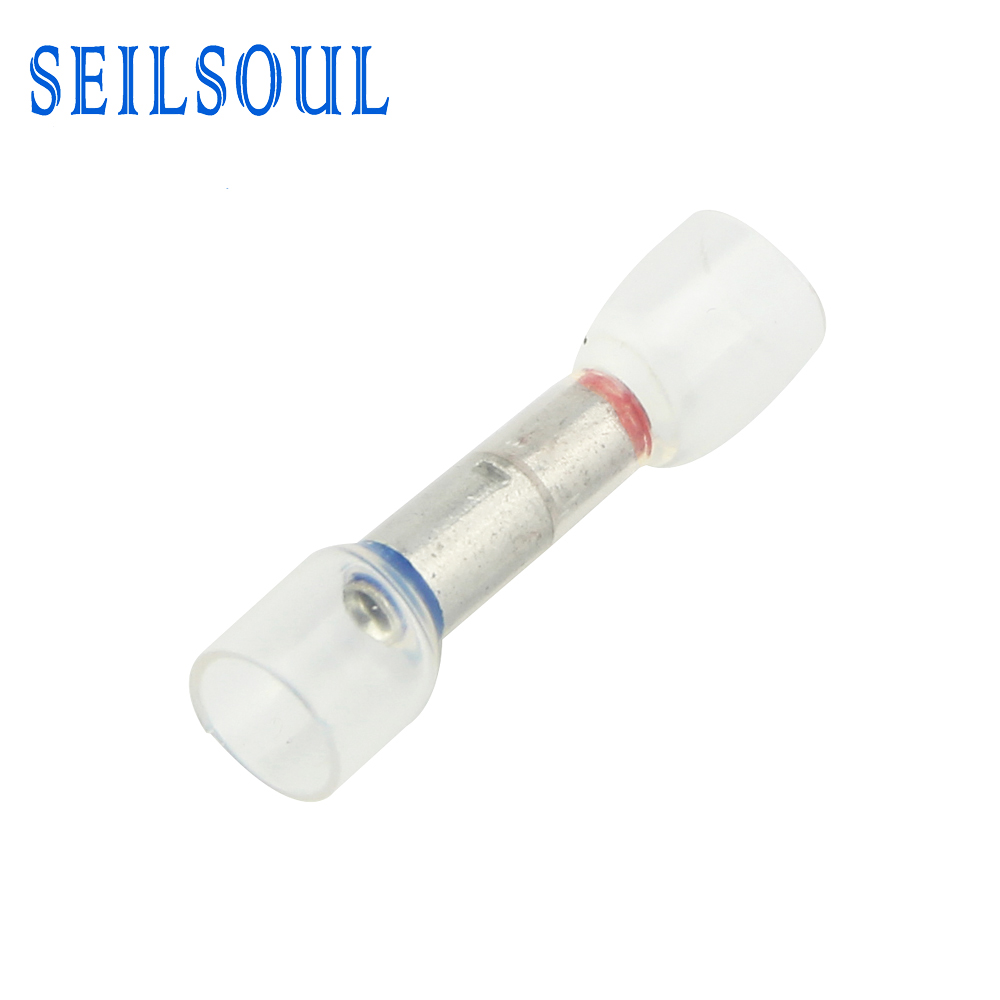

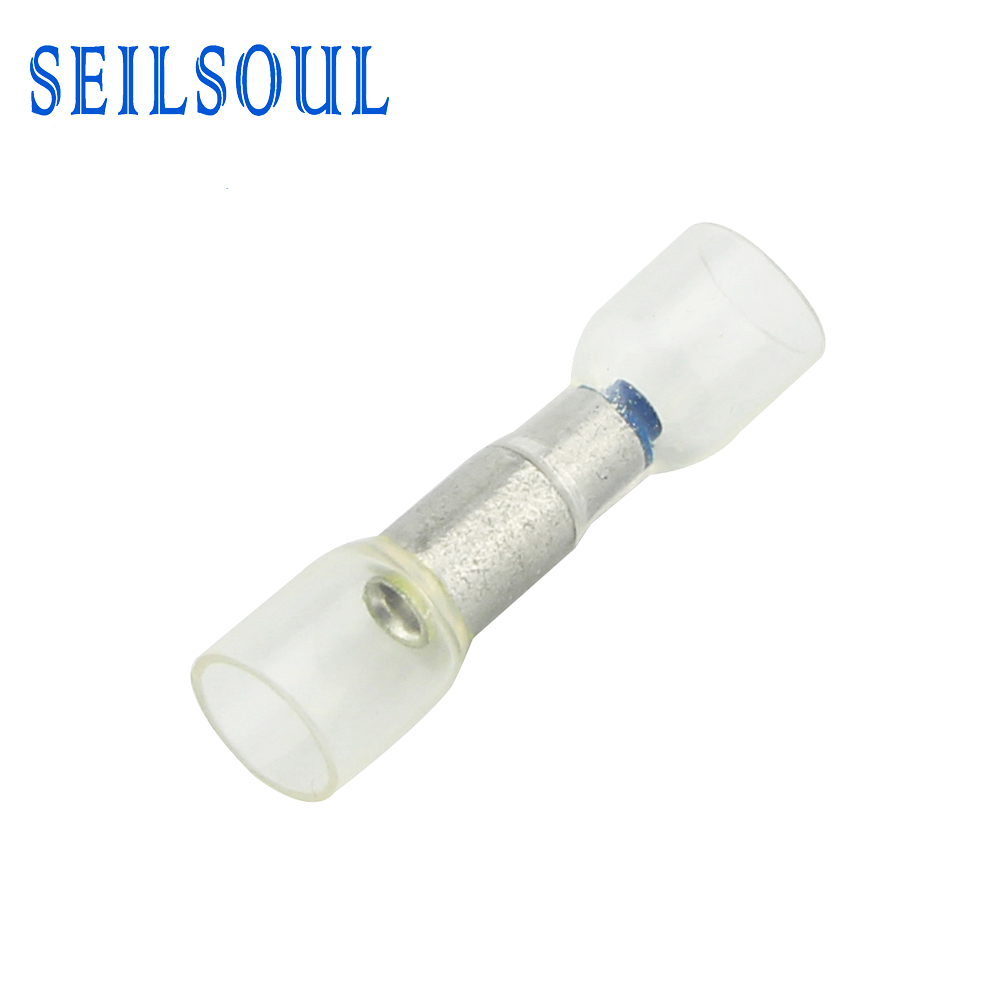

Application: BHTCD is series is the high transparency heat shrinkable tubing made by Nylon, with adhesive lining to protect splices from water and corrosion. It provides strain relief and anti-vibration in rugged environment, and completely insulates and protects electrical connections. The high purity copper tube provides excellent conductivity. With different sized copper tube, it allows the convenient connection of two different wire sizes. It offers long duration performance, easy installation, and low installing cost, which is more reliable than conventional crimp terminals. Characteristics: ●Shrink ratio: 3:1 ●Excellent conductivity property ●High transparency, High tensile strength ●Excellent stretch and mechanical damage resistance ●High elasticity assures steady performance ●Water proof and moisture resistance ●Operating temperature: -55℃~125℃ ●Minimum shrink temperature: 180℃ Materials ●Insulation: Polyolefin ●Terminal body: Copper |
Property | Specification Requirement | Test Method | Typical Value | ||||||
Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 18.5Mpa | ||||||
Elongation at break (Room temp.) | Min. 200% | UL224 | 450% | ||||||
Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 15Mpa | ||||||
Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 220% | ||||||
Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass | ||||||
Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | Pass | ||||||
Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. | ||||||
Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass | ||||||
Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass | ||||||
Maximum secant modulus (2%) | 173Mpa | UL224 | Pass | ||||||
Volume resistivity | Min. 1014Ω·m | UL224 | Pass | ||||||
Heat shock (250℃ 4hrs) | No crack | ASTM D2671 | Pass | ||||||
Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |

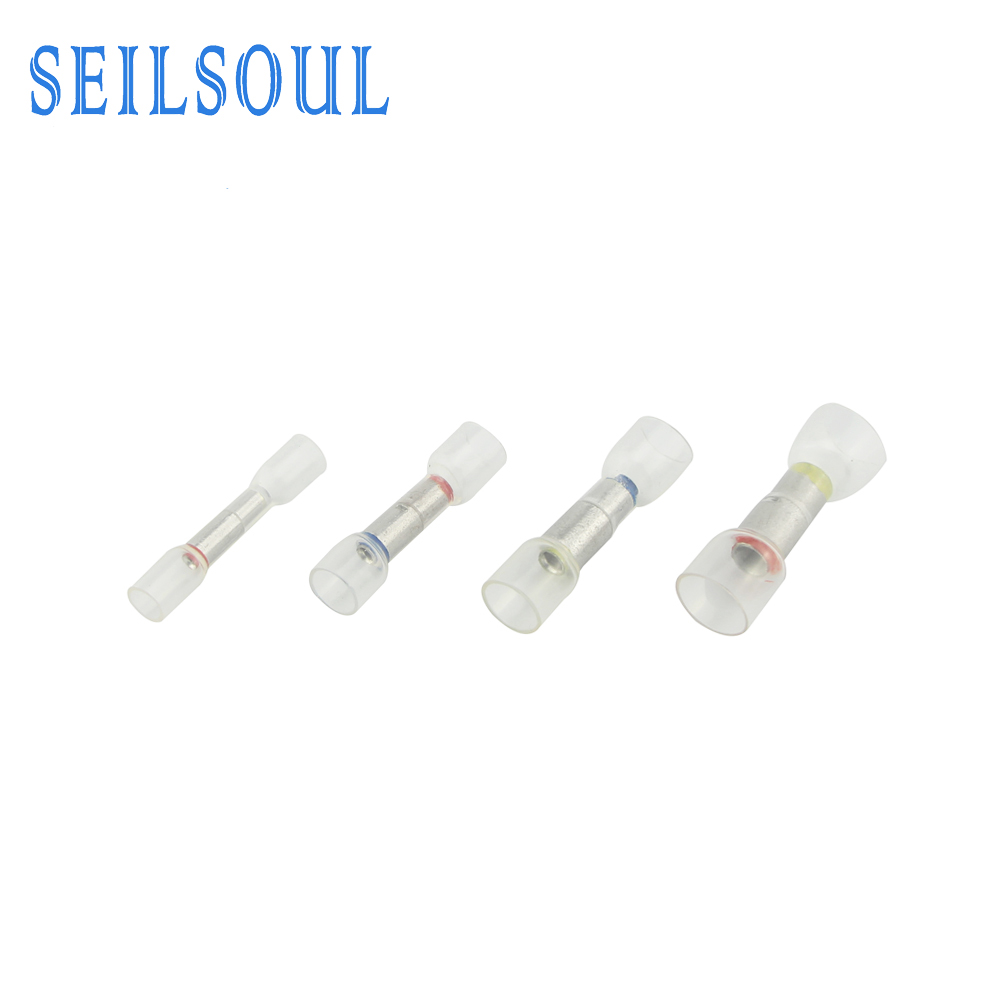

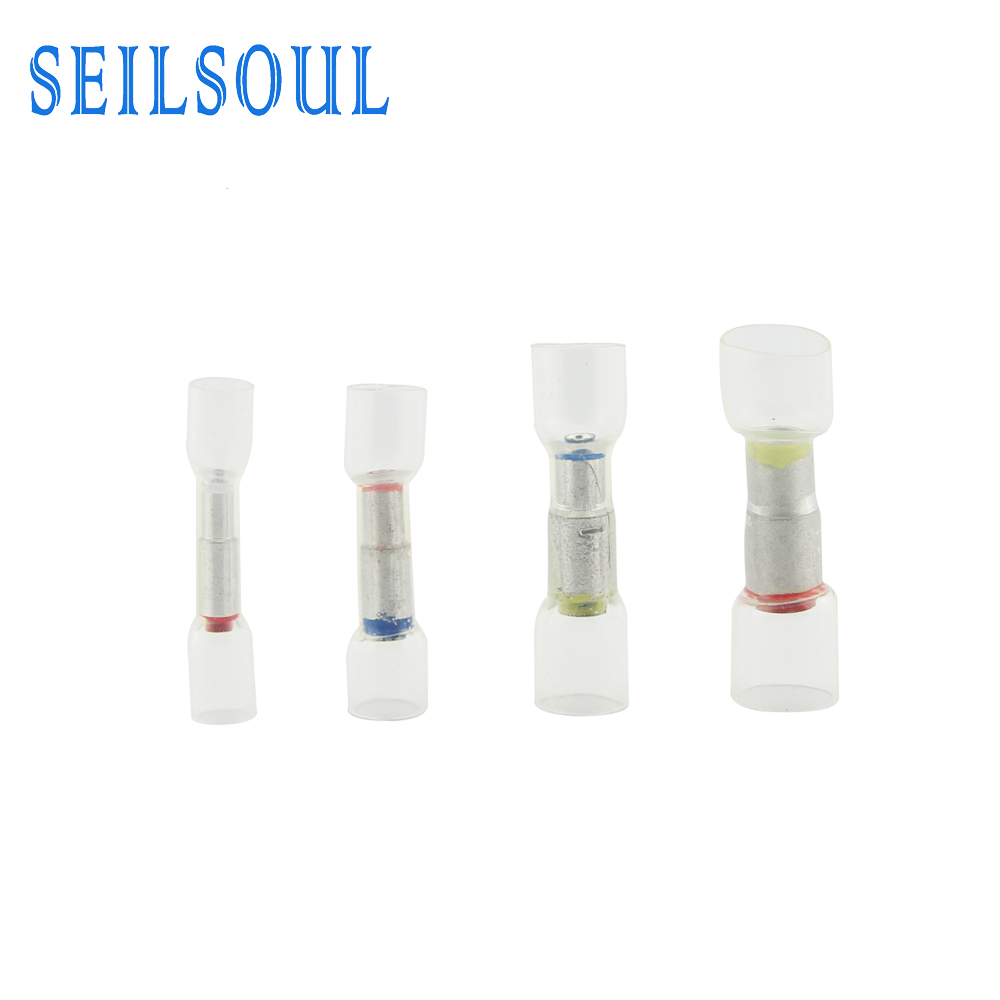

Item NO. | Wire Range | Dimension | Color | ||||||

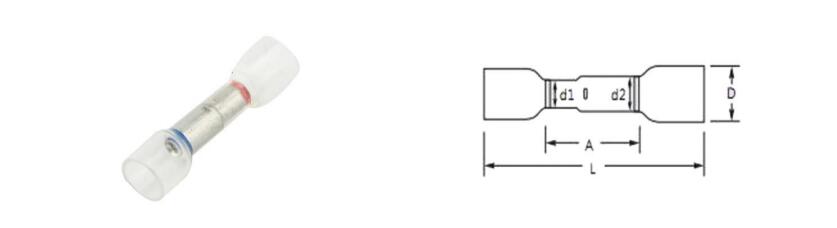

A.W.G | Φd1 | Φd2 | ΦD | A | L | ||||
BHTCD-WR | 26-24 | 22-18 | 1 | 1.6 | 6.2 | 19 | 40 | ● white | ● red |
BHTCD-RB | 22-18 | 16-14 | 1.6 | 2.2 | 8 | 19 | 40 | ● red | ● blue |
BHTCD-BY | 16-14 | 12-10 | 2.2 | 3.4 | 9 | 21 | 45 | ● blue | ● yellow |
Application: BHTCD is series is the high transparency heat shrinkable tubing made by Nylon, with adhesive lining to protect splices from water and corrosion. It provides strain relief and anti-vibration in rugged environment, and completely insulates and protects electrical connections. The high purity copper tube provides excellent conductivity. With different sized copper tube, it allows the convenient connection of two different wire sizes. It offers long duration performance, easy installation, and low installing cost, which is more reliable than conventional crimp terminals. Characteristics: ●Shrink ratio: 3:1 ●Excellent conductivity property ●High transparency, High tensile strength ●Excellent stretch and mechanical damage resistance ●High elasticity assures steady performance ●Water proof and moisture resistance ●Operating temperature: -55℃~125℃ ●Minimum shrink temperature: 180℃ Materials ●Insulation: Polyolefin ●Terminal body: Copper |
Property | Specification Requirement | Test Method | Typical Value | ||||||
Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 18.5Mpa | ||||||
Elongation at break (Room temp.) | Min. 200% | UL224 | 450% | ||||||
Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 15Mpa | ||||||
Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 220% | ||||||
Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass | ||||||
Voltage withstand (Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | Pass | ||||||
Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. | ||||||
Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass | ||||||
Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass | ||||||
Maximum secant modulus (2%) | 173Mpa | UL224 | Pass | ||||||
Volume resistivity | Min. 1014Ω·m | UL224 | Pass | ||||||
Heat shock (250℃ 4hrs) | No crack | ASTM D2671 | Pass | ||||||
Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |
Item NO. | Wire Range | Dimension | Color | ||||||
A.W.G | Φd1 | Φd2 | ΦD | A | L | ||||
BHTCD-WR | 26-24 | 22-18 | 1 | 1.6 | 6.2 | 19 | 40 | ● white | ● red |
BHTCD-RB | 22-18 | 16-14 | 1.6 | 2.2 | 8 | 19 | 40 | ● red | ● blue |
BHTCD-BY | 16-14 | 12-10 | 2.2 | 3.4 | 9 | 21 | 45 | ● blue | ● yellow |
