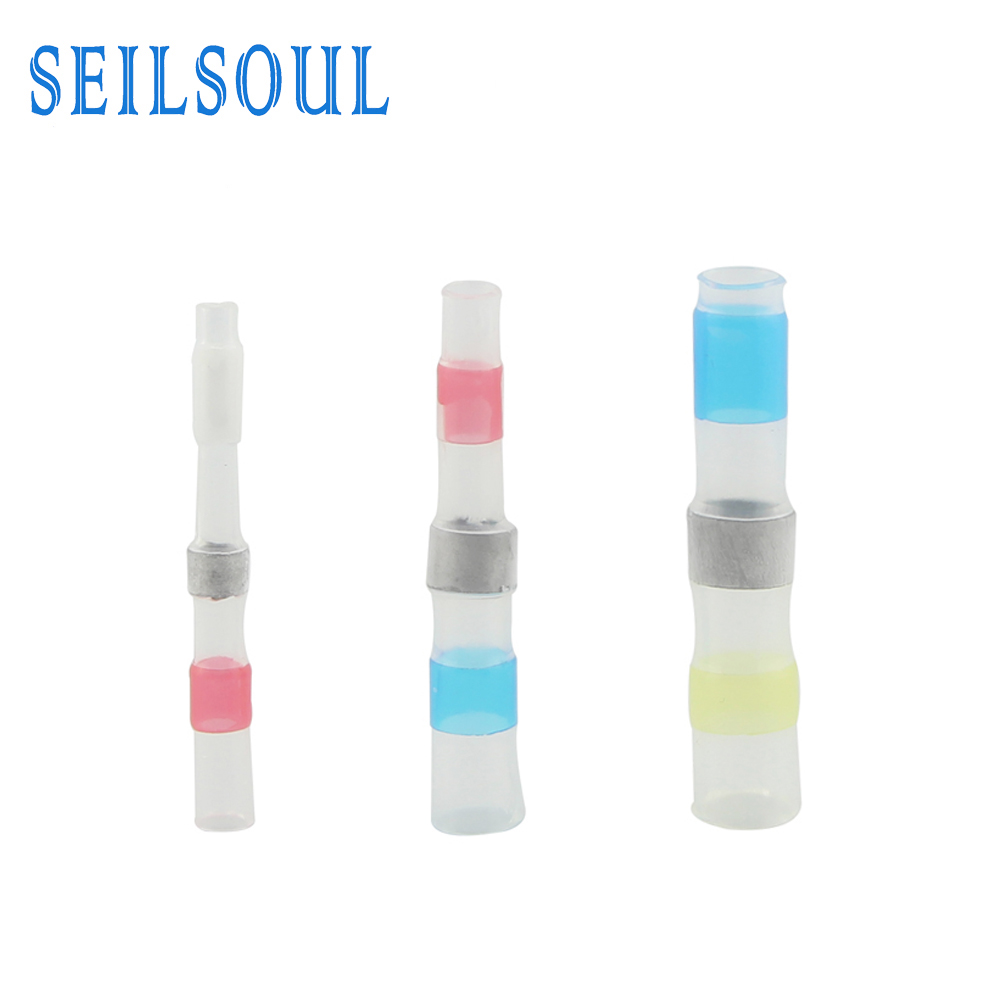

HXTS
Seilsoul
Application: Transparent insulation sleeve provides encapsulation,inspectability, strain relief and insulation.Pre-fluxed solder provides controlled soldering process.One-piece design provides easy installation and lower installing cost. Different color coded hot-melt rings on two ends of heat shrinkable tube provide precise selection and allow the joint of different wire sizes. Main application is to connect two or more wires, even in different sizes. Characteristics: ●Shrink ratio: 2:1 ●Waterproof for wiring splices ●Transparent sleeve provides visual inspection ●High elasticity assures steady performance ●Easy control of soldering process ●Operating temperature: -55℃~125℃ ●Minimum shrink temperature: 140℃ |
Property | Specification Requirement | Test Method | Typical Value | |||||
Tensile strength | exceeds strength of conductor | NAS1745 | passed | |||||
Tensile strength after aging | exceeds strength of conductor | NAS1745 | passed | |||||
Voltage Drop | <2.5MV | NAS1745 | passed | |||||
Voltage Resistant | >600V | UL224 | passed | |||||
Protection type | - | IEC 60529 | IP67 | |||||
Volume resistivity | >1015Ω·m | ASTM D876 | passed | |||||
Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |

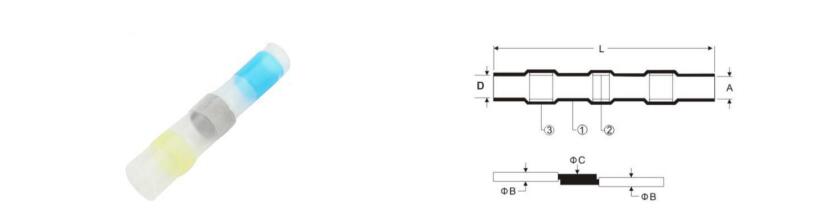

Product Code | Wire Range | L | Φ A Min (mm) | Φ D Min (mm) | Wire Dimensions | Color | ||||
A.W.G | (mm) | B Min | B Max C Max | C Min | ||||||

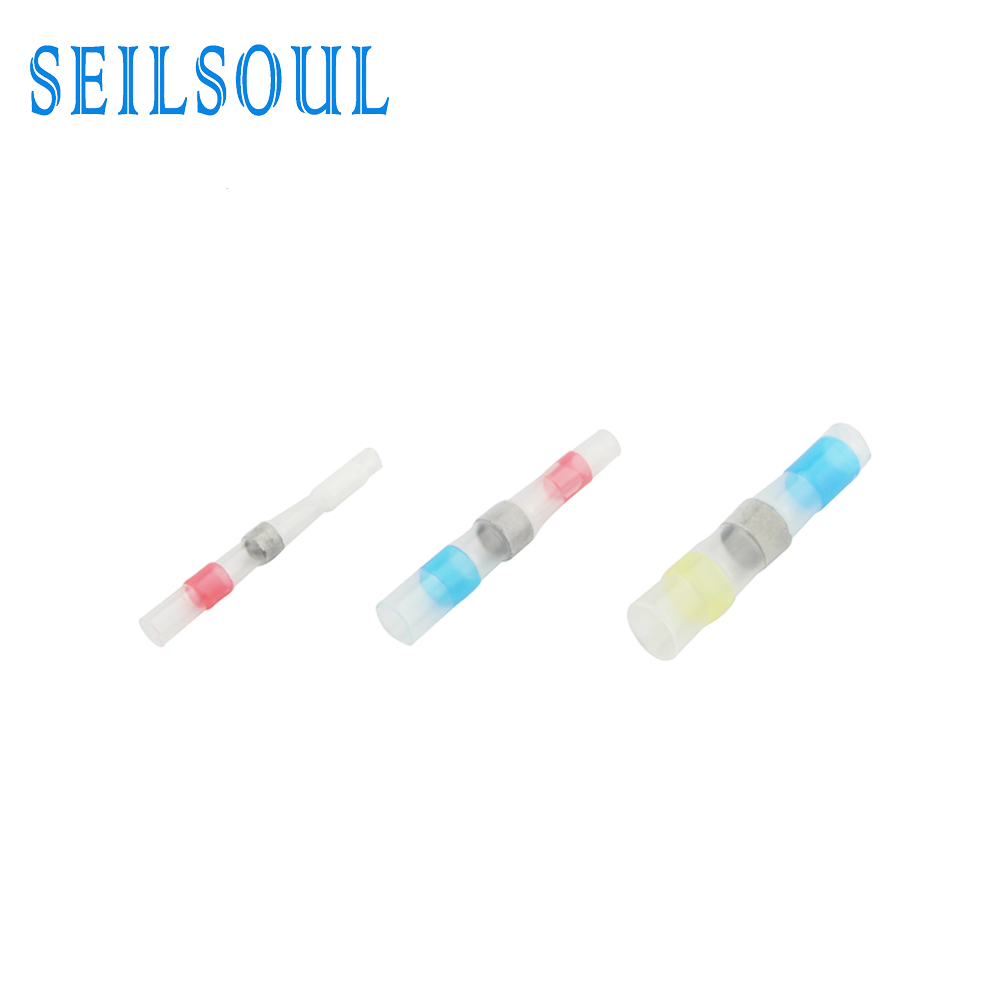

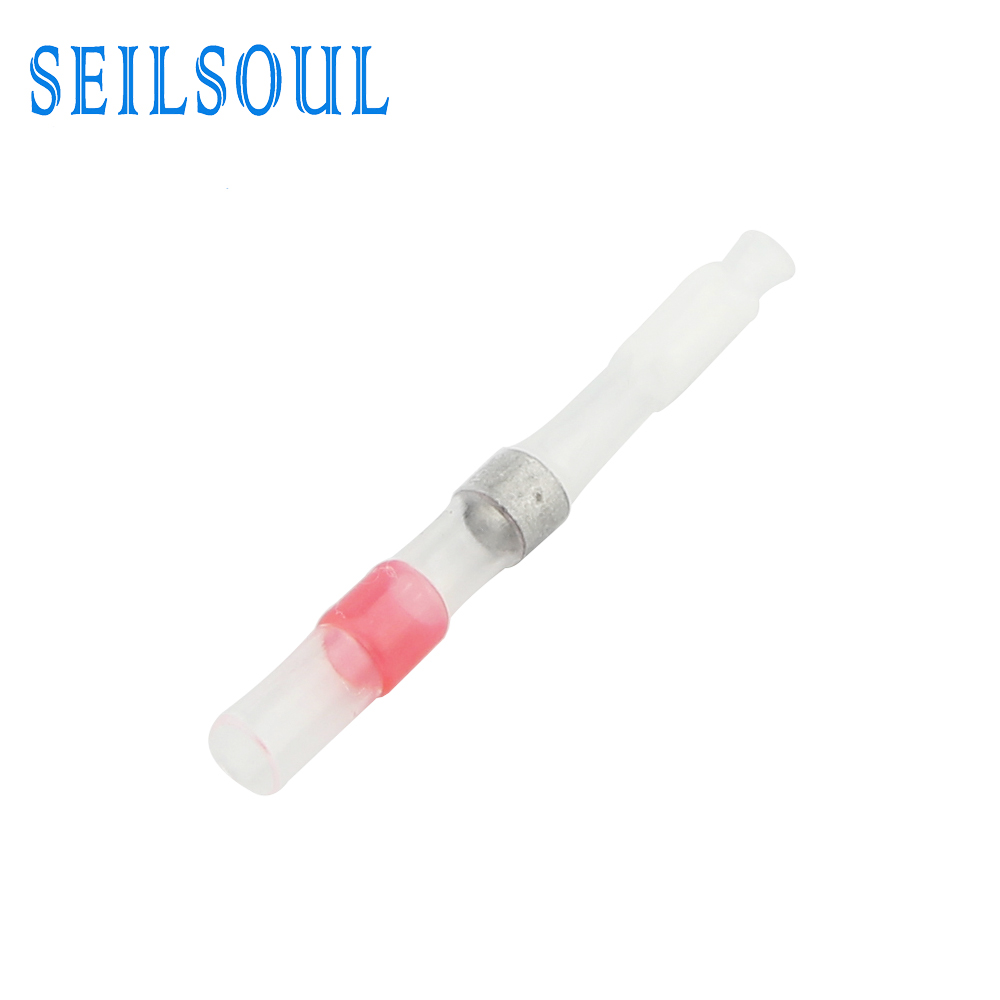

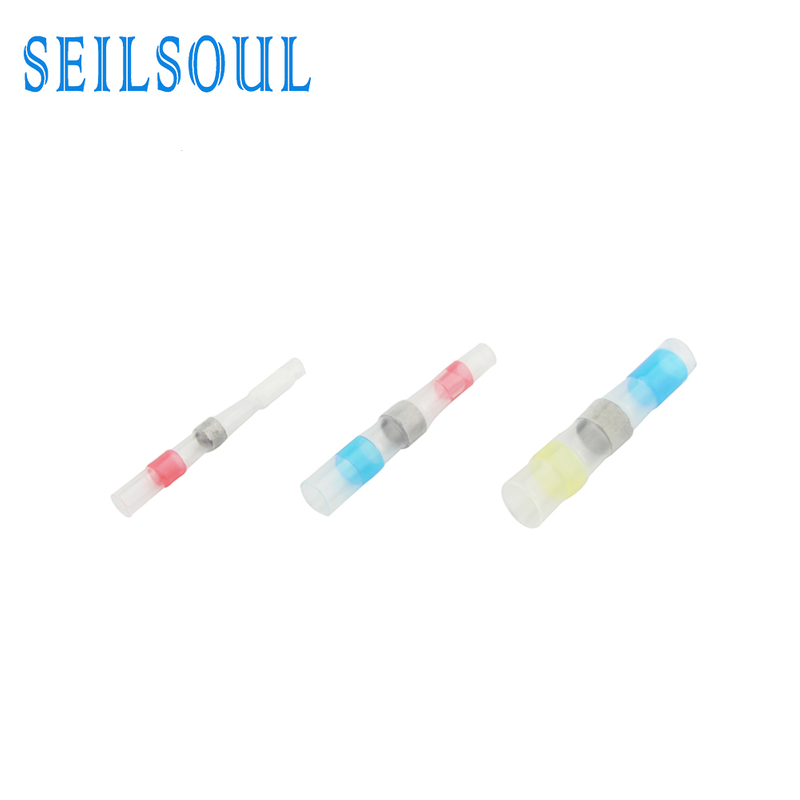

HXTS-WR | 26-24 | 22-18 | 40 | 1.7 | 2.7 | 0.4 | 2.7 | 0.76 | ● white | ● red |

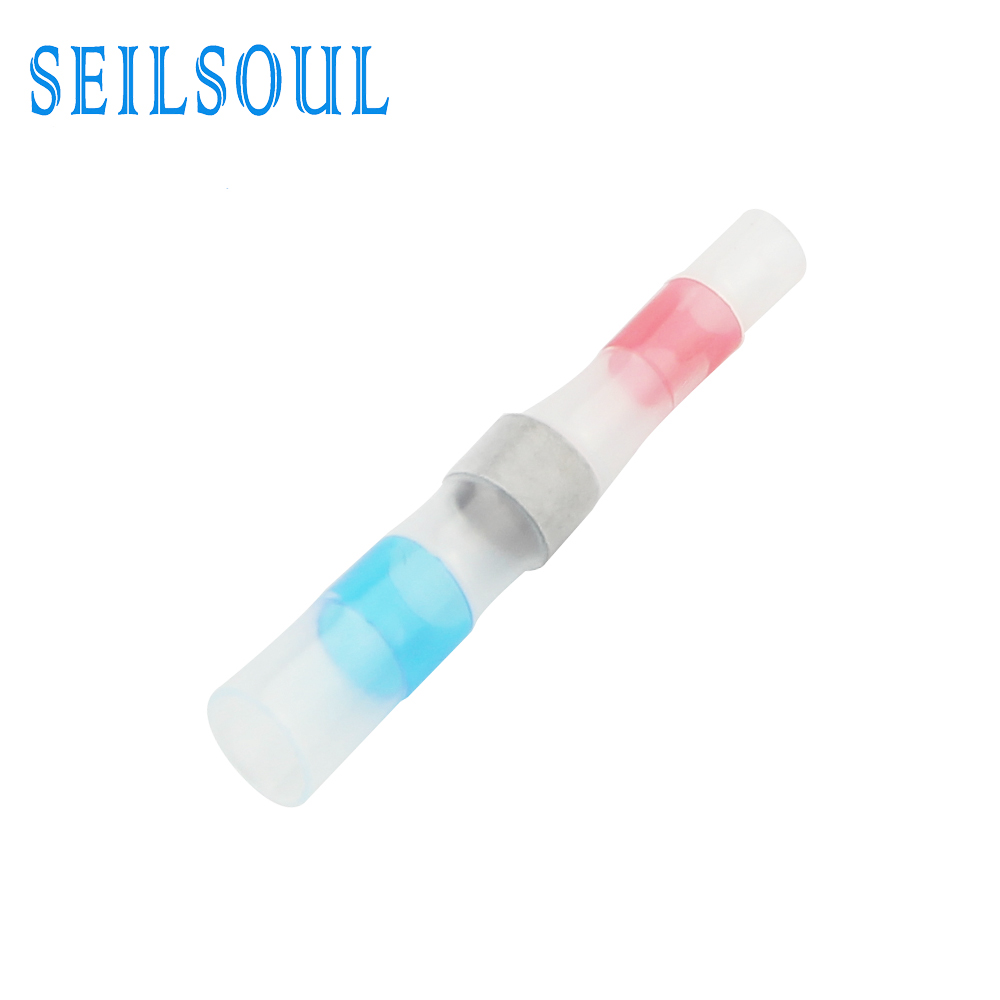

HXTS-RB | 22-18 | 16-14 | 40 | 2.7 | 4.5 | 1.3 | 4.5 | 1.2 | ● red | ● blue |

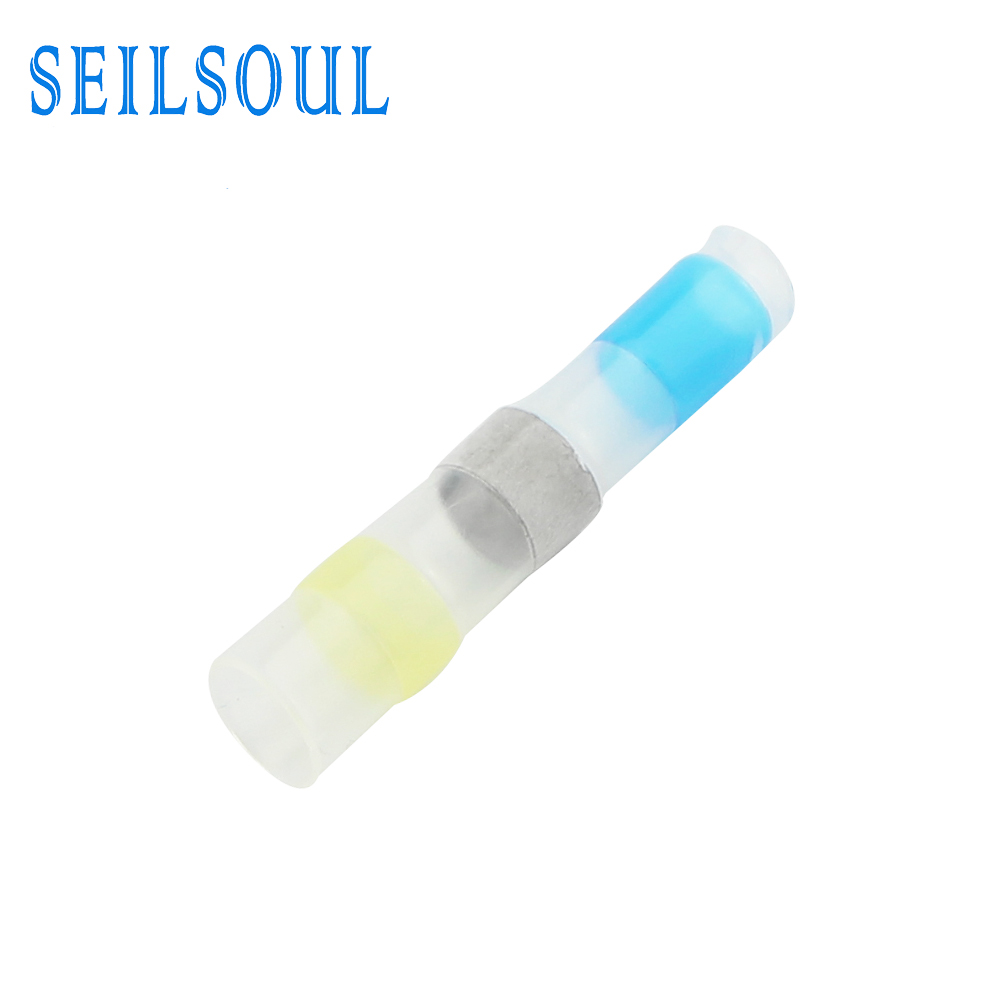

HXTS-BY | 16-14 | 12-10 | 40 | 4.5 | 6 | 1.8 | 6 | 2 | ● blue | ● yellow |
●Item 1 : Heat shrinkable Sleeve, Transparent, Radiation cross-linked modified polyolefin.
●Item 2: Solder Ring with flux.
●Item 3: Meltable rings.
Application: Transparent insulation sleeve provides encapsulation,inspectability, strain relief and insulation.Pre-fluxed solder provides controlled soldering process.One-piece design provides easy installation and lower installing cost. Different color coded hot-melt rings on two ends of heat shrinkable tube provide precise selection and allow the joint of different wire sizes. Main application is to connect two or more wires, even in different sizes. Characteristics: ●Shrink ratio: 2:1 ●Waterproof for wiring splices ●Transparent sleeve provides visual inspection ●High elasticity assures steady performance ●Easy control of soldering process ●Operating temperature: -55℃~125℃ ●Minimum shrink temperature: 140℃ |
Property | Specification Requirement | Test Method | Typical Value | |||||
Tensile strength | exceeds strength of conductor | NAS1745 | passed | |||||
Tensile strength after aging | exceeds strength of conductor | NAS1745 | passed | |||||
Voltage Drop | <2.5MV | NAS1745 | passed | |||||
Voltage Resistant | >600V | UL224 | passed | |||||
Protection type | - | IEC 60529 | IP67 | |||||
Volume resistivity | >1015Ω·m | ASTM D876 | passed | |||||
Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |
Product Code | Wire Range | L | Φ A Min (mm) | Φ D Min (mm) | Wire Dimensions | Color | ||||
A.W.G | (mm) | B Min | B Max C Max | C Min | ||||||
HXTS-WR | 26-24 | 22-18 | 40 | 1.7 | 2.7 | 0.4 | 2.7 | 0.76 | ● white | ● red |
HXTS-RB | 22-18 | 16-14 | 40 | 2.7 | 4.5 | 1.3 | 4.5 | 1.2 | ● red | ● blue |
HXTS-BY | 16-14 | 12-10 | 40 | 4.5 | 6 | 1.8 | 6 | 2 | ● blue | ● yellow |
●Item 1 : Heat shrinkable Sleeve, Transparent, Radiation cross-linked modified polyolefin.
●Item 2: Solder Ring with flux.
●Item 3: Meltable rings.
