RSMD
Seilsoul
Insulation:Polyolefin Terminal Material:Brass Plating:Tin
Cable size:0.5-1.5mm²(A.W.G.22-16) Max Current:Imax=10A
Operating Tem:55℃-125℃ Begin to Shrink Tem:80℃ Min Complete Shrinkage Tem: 130℃

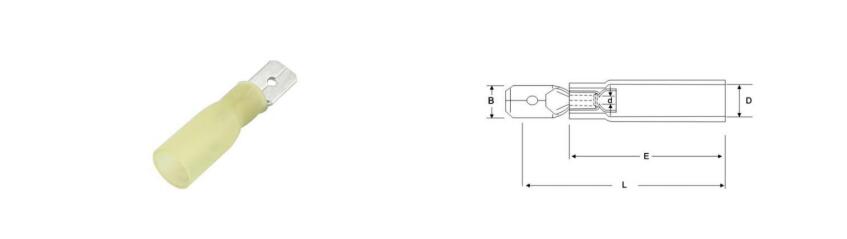

Item NO. | Nema Tab | Thickness | Dimension | Color | ||||
B | dφ | Dφ | L | E | ||||
RSMD1.25-110(5) | 0.5*2.8 | 0.5 | 2.8 | 1.7 | 4.8 | 26.5 | 19 | ● red |
RSMD1.25-110(8) | 0.8*2.8 | 0.8 | 2.8 | 1.7 | 26.5 | |||
RSMD1.25-187(5) | 0.5*4.75 | 0.5 | 4.8 | 1.7 | 28.8 | |||
RSMD1.25-187(8) | 0.4*4.75 | 0.4*2 | 4.8 | 1.7 | 28.8 | |||
RSMD1.25-250 | 0.8*6.35 | 0.4*2 | 6.4 | 1.7 | 29.8 |
Insulation:Polyolefin Terminal Material:Brass Plating:Tin
Cable size:1.5-2.5mm²(A.W.G.16-14) Max Current:Imax=15A
Operating Tem:55℃-125℃ Begin to Shrink Tem:80℃ Min Complete Shrinkage Tem: 130℃
Item NO. | Nema Tab | Thickness | Dimension | Color | ||||
B | dφ | Dφ | L | E | ||||
RSMD2-110(5) | 0.5*2.8 | 0.5 | 2.8 | 2.3 | 5.8 | 26.5 | 19 | ● blue |
RSMD2-110(8) | 0.8*2.8 | 0.8 | 2.8 | 2.3 | 26.5 | |||
RSMD2-187(5) | 0.5*4.75 | 0.5 | 4.8 | 2.3 | 28.8 | |||
RSMD2-187(8) | 0.4*4.75 | 0.4*2 | 4.8 | 2.3 | 28.8 | |||
RSMD2-250 | 0.8*6.35 | 0.4*2 | 6.4 | 2.3 | 29.8 |
Insulation:Polyolefin Terminal Material:Brass Plating:Tin
Cable size:4.0-6.0mm²(A.W.G.12-10) Max Current:Imax=24A
Operating Tem:55℃-125℃ Begin to Shrink Tem:80℃ Min Complete Shrinkage Tem: 130℃
Item NO. | Nema Tab | Thickness | Dimension | Color | ||||
B | dφ | Dφ | L | E | ||||
RSMD5.5-110(5) | 0.5*2.8 | 0.5 | 2.8 | 3.4 | 6.8 | 28.8 | 22 | ● yellow |
RSMD5.5-110(8) | 0.8*2.8 | 0.8 | 2.8 | 3.4 | 28.8 | |||
RSMD5.5-187 | 0.5*4.75 | 0.5 | 4.8 | 3.4 | 30.8 | |||
RSMD5.5-250 | 0.8*6.35 | 0.4*2 | 6.4 | 3.4 | 31.8 |
Insulation:Polyolefin Terminal Material:Brass Plating:Tin
Cable size:0.5-1.5mm²(A.W.G.22-16) Max Current:Imax=10A
Operating Tem:55℃-125℃ Begin to Shrink Tem:80℃ Min Complete Shrinkage Tem: 130℃
Item NO. | Nema Tab | Thickness | Dimension | Color | ||||
B | dφ | Dφ | L | E | ||||
RSMD1.25-110(5) | 0.5*2.8 | 0.5 | 2.8 | 1.7 | 4.8 | 26.5 | 19 | ● red |
RSMD1.25-110(8) | 0.8*2.8 | 0.8 | 2.8 | 1.7 | 26.5 | |||
RSMD1.25-187(5) | 0.5*4.75 | 0.5 | 4.8 | 1.7 | 28.8 | |||
RSMD1.25-187(8) | 0.4*4.75 | 0.4*2 | 4.8 | 1.7 | 28.8 | |||
RSMD1.25-250 | 0.8*6.35 | 0.4*2 | 6.4 | 1.7 | 29.8 |
Insulation:Polyolefin Terminal Material:Brass Plating:Tin
Cable size:1.5-2.5mm²(A.W.G.16-14) Max Current:Imax=15A
Operating Tem:55℃-125℃ Begin to Shrink Tem:80℃ Min Complete Shrinkage Tem: 130℃
Item NO. | Nema Tab | Thickness | Dimension | Color | ||||
B | dφ | Dφ | L | E | ||||
RSMD2-110(5) | 0.5*2.8 | 0.5 | 2.8 | 2.3 | 5.8 | 26.5 | 19 | ● blue |
RSMD2-110(8) | 0.8*2.8 | 0.8 | 2.8 | 2.3 | 26.5 | |||
RSMD2-187(5) | 0.5*4.75 | 0.5 | 4.8 | 2.3 | 28.8 | |||
RSMD2-187(8) | 0.4*4.75 | 0.4*2 | 4.8 | 2.3 | 28.8 | |||
RSMD2-250 | 0.8*6.35 | 0.4*2 | 6.4 | 2.3 | 29.8 |
Insulation:Polyolefin Terminal Material:Brass Plating:Tin
Cable size:4.0-6.0mm²(A.W.G.12-10) Max Current:Imax=24A
Operating Tem:55℃-125℃ Begin to Shrink Tem:80℃ Min Complete Shrinkage Tem: 130℃
Item NO. | Nema Tab | Thickness | Dimension | Color | ||||
B | dφ | Dφ | L | E | ||||
RSMD5.5-110(5) | 0.5*2.8 | 0.5 | 2.8 | 3.4 | 6.8 | 28.8 | 22 | ● yellow |
RSMD5.5-110(8) | 0.8*2.8 | 0.8 | 2.8 | 3.4 | 28.8 | |||
RSMD5.5-187 | 0.5*4.75 | 0.5 | 4.8 | 3.4 | 30.8 | |||
RSMD5.5-250 | 0.8*6.35 | 0.4*2 | 6.4 | 3.4 | 31.8 |
Seilsoul is a production and trading company specializing in the production of terminal. The company has more than ten years of production experience in the field of terminal. Our products have been exported to more than 30 countries in recent years. Exported to Amazon, Alibaba and other international related trading websites, and received unanimous praise from customers and the industry.
Our company has a complete production chain and hundreds of production categories. The company adheres to the production and management philosophy of “Quality First, Service First, Credit First”. We strictly control the quality of our products. We have our professional quality inspection department to conduct professional and strict screening for every product delivered to our customers. Our products are certified by international CE.
Seilsoul is a production and trading company specializing in the production of terminal. The company has more than ten years of production experience in the field of terminal. Our products have been exported to more than 30 countries in recent years. Exported to Amazon, Alibaba and other international related trading websites, and received unanimous praise from customers and the industry.
Our company has a complete production chain and hundreds of production categories. The company adheres to the production and management philosophy of “Quality First, Service First, Credit First”. We strictly control the quality of our products. We have our professional quality inspection department to conduct professional and strict screening for every product delivered to our customers. Our products are certified by international CE.
FDD | MDD | FDFD |
RV | BV | PTD |
FDD | MDD | FDFD |
RV | BV | PTD |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
