CB
Seilsoul

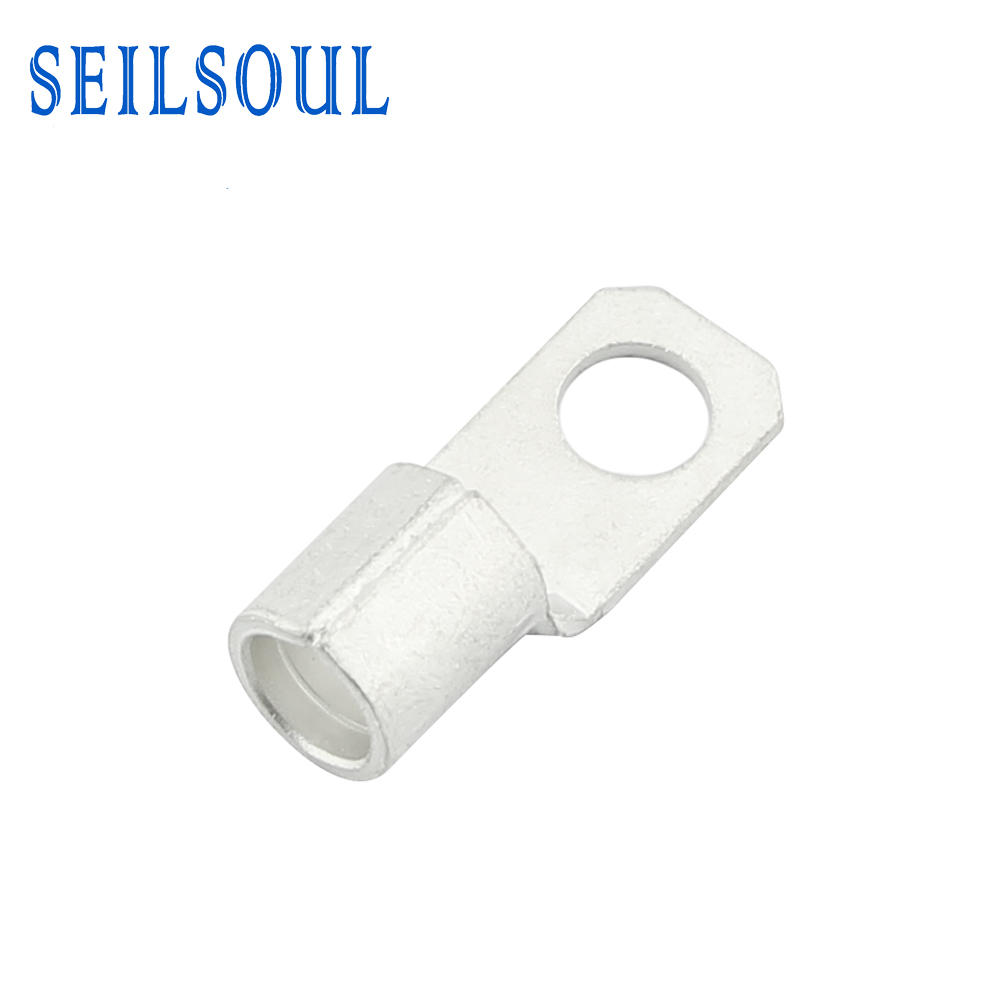

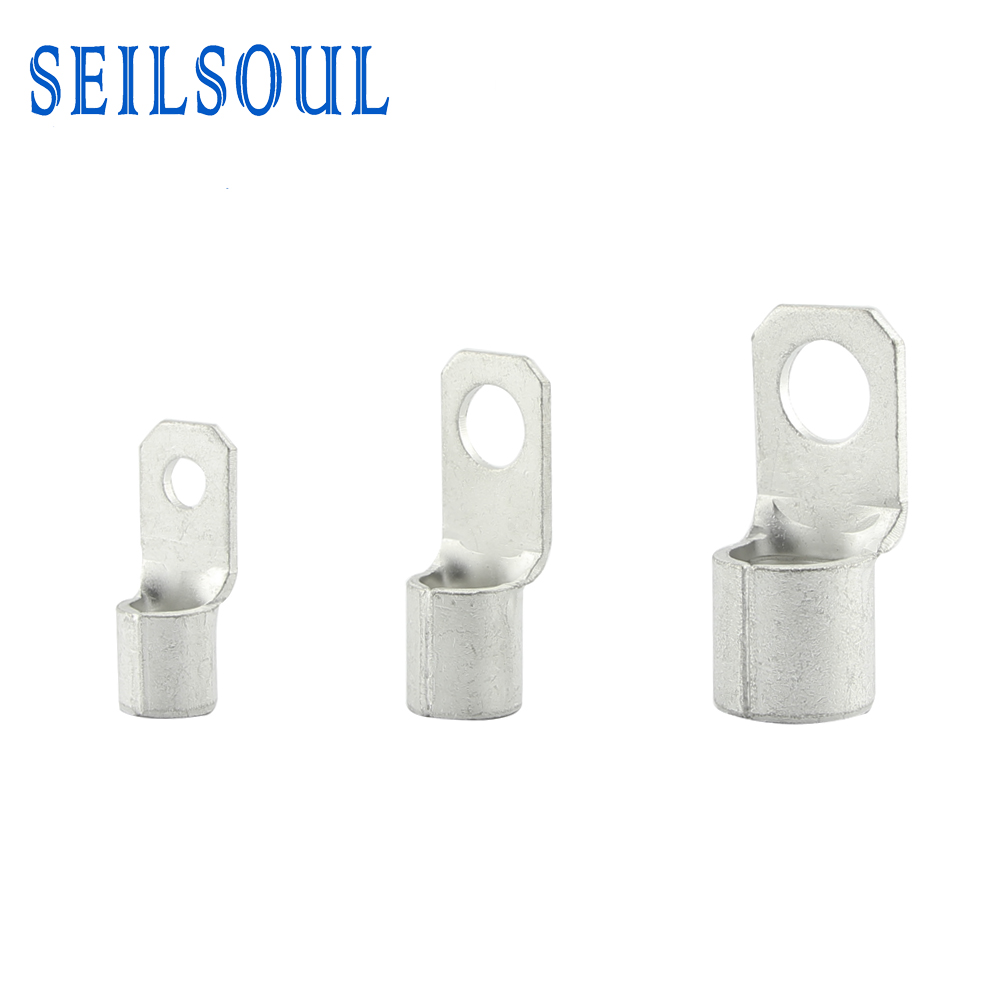

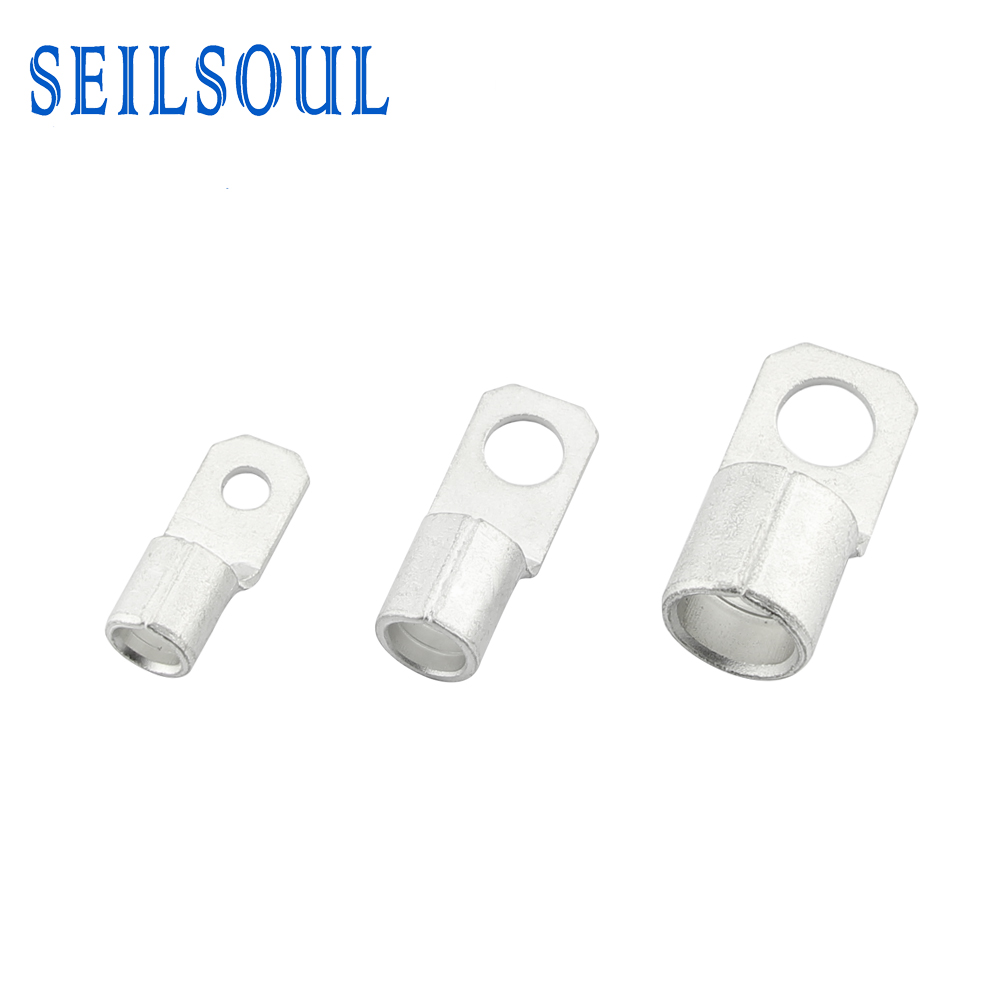

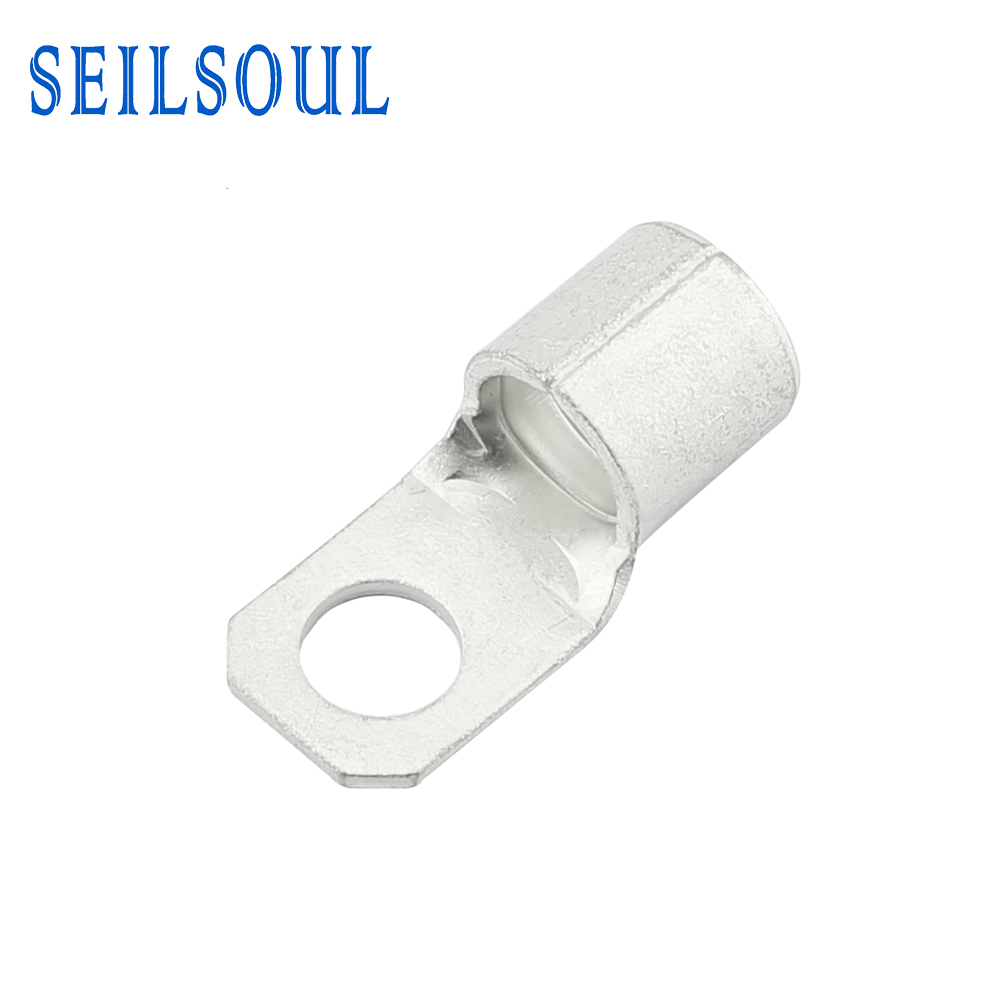

Terminal Material:Copper Plating:Tin
Cable size:16-25mm²(A.W.G.4) Max Current:Imax=115A Thickness:1.7mm

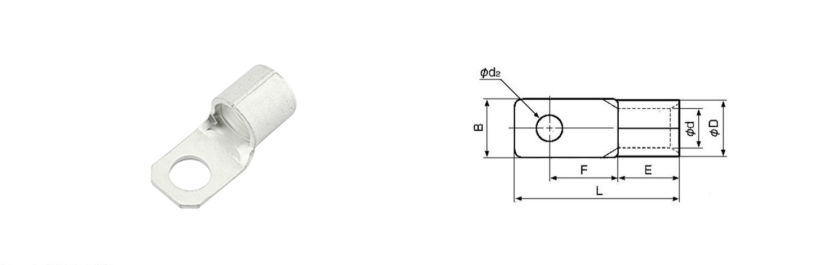

ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB22-5 | #10 | 5.3 | 12.5 | 33 | 14.2 | 12 | 11.6 | 8.2 |
CB22-6 | 1/4 | 6.4 | ||||||
CB22-8 | 5/16 | 8.2 |
Terminal Material:Copper Plating:Tin
Cable size:30-50mm²(A.W.G.2) Max Current:Imax=160A Thickness:1.8mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB38-5 | #10 | 5.3 | 13 | 38 | 16.2 | 14 | 13.3 | 9.4 |
CB38-6 | 1/4 | 6.4 | ||||||
CB38-8 | 5/16 | 8.4 |
Terminal Material:Copper Plating:Tin
Cable size:50-70mm²(A.W.G.1/0) Max Current:Imax=215A Thickness:1.8mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB60-6 | 1/4 | 6.4 | 16 | 48.5 | 20.7 | 18 | 15.4 | 12 |
CB60-8 | 5/16 | 8.4 | ||||||
CB60-10 | 3/8 | 10.5 |
Terminal Material:Copper Plating:Tin
Cable size:70-95mm²(A.W.G.2/0) Max Current:Imax=235A Thickness:2.0mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB70-8 | 5/16 | 8.4 | 19.5 | 49 | 20 | 19 | 17.5 | 13.5 |
CB70-10 | 3/8 | 10.5 |
Terminal Material:Copper Plating:Tin
Cable size:95-120mm²(A.W.G.3/0) Max Current:Imax=255A Thickness:2.3mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB80-8 | 5/16 | 8.4 | 22 | 52 | 20.7 | 20 | 19.5 | 15 |
CB80-10 | 3/8 | 10.5 | ||||||
CB80-12 | 1/2 | 13 |
Terminal Material:Copper Plating:Tin
Cable size:120-150mm²(A.W.G.4/0) Max Current:Imax=300A Thickness:2.7mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB100-8 | 5/16 | 8.4 | 22 | 53.5 | 20.3 | 21 | 22.5 | 17 |
CB100-10 | 3/8 | 10.5 | ||||||
CB100-12 | 1/2 | 13 |
Terminal Material:Copper Plating:Tin
Cable size:150-185mm²(A.W.G.250/300) Max Current:Imax=395A Thickness:3.2mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB150-8 | 5/16 | 8.4 | 28 | 62.5 | 21 | 27 | 27 | 20 |
CB150-10 | 3/8 | 10.5 | ||||||
CB150-12 | 1/2 | 13 |
Terminal Material:Copper Plating:Tin
Cable size:185-240mm²(A.W.G.300/350) Max Current:Imax=440A Thickness:3.5mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB180-10 | 3/8 | 10.5 | 29 | 65.5 | 21.2 | 28.5 | 28.6 | 21 |
CB180-12 | 1/2 | 13 |
Terminal Material:Copper Plating:Tin
Cable size:240-300mm²(A.W.G.400/500MCB) Max Current:Imax=470A Thickness:4.0mm
ITEM NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
B | L | F | E | ΦD | Φd | |||
CB200-10 | 3/8 | 10.5 | 33 | 73 | 24.3 | 31.5 | 32.6 | 24 |
CB200-12 | 1/2 | 13 |
