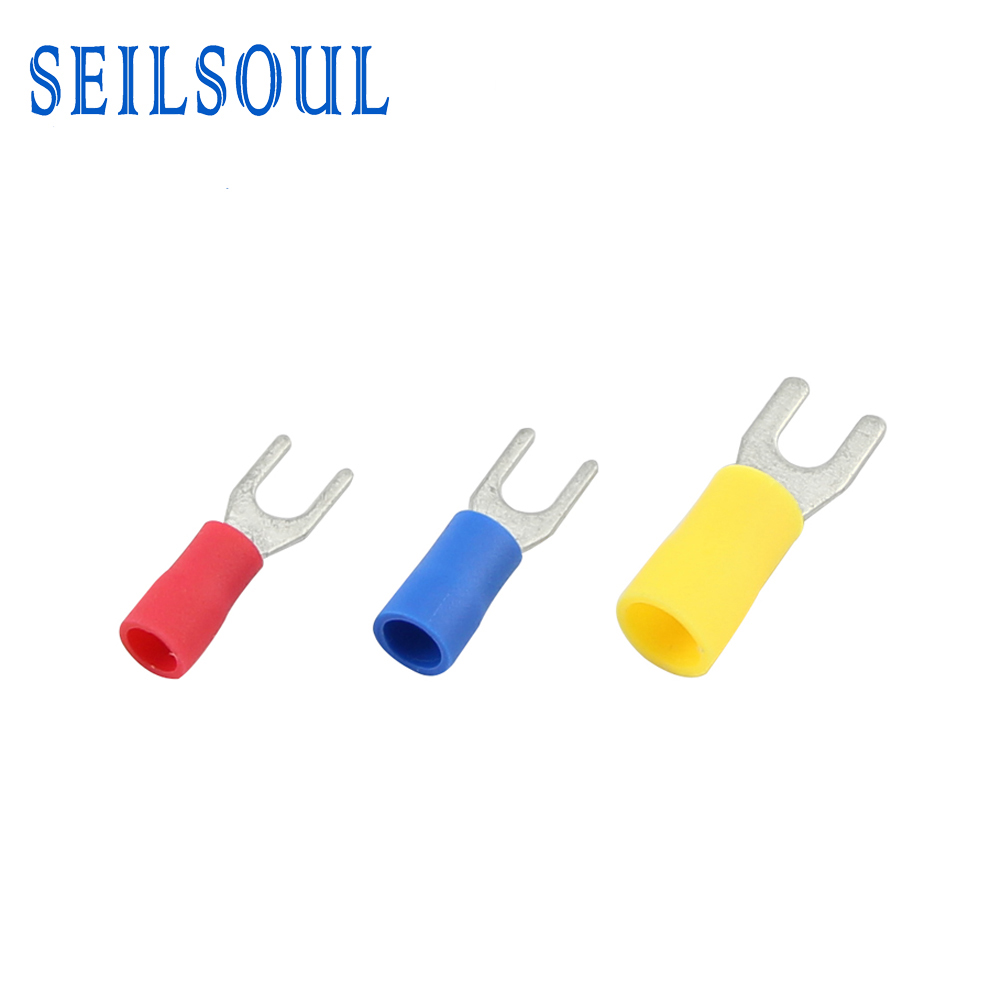

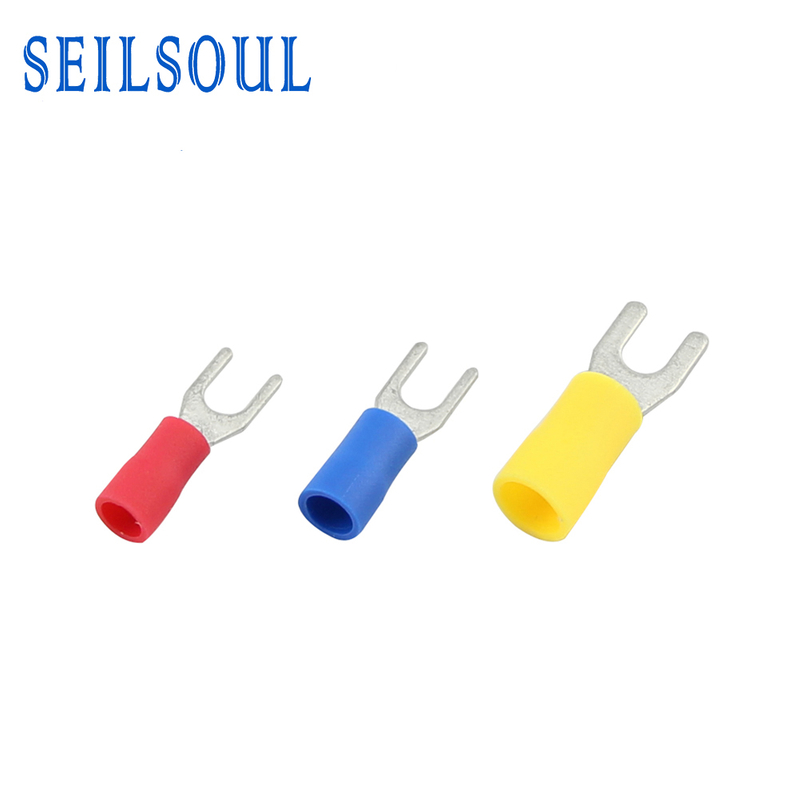

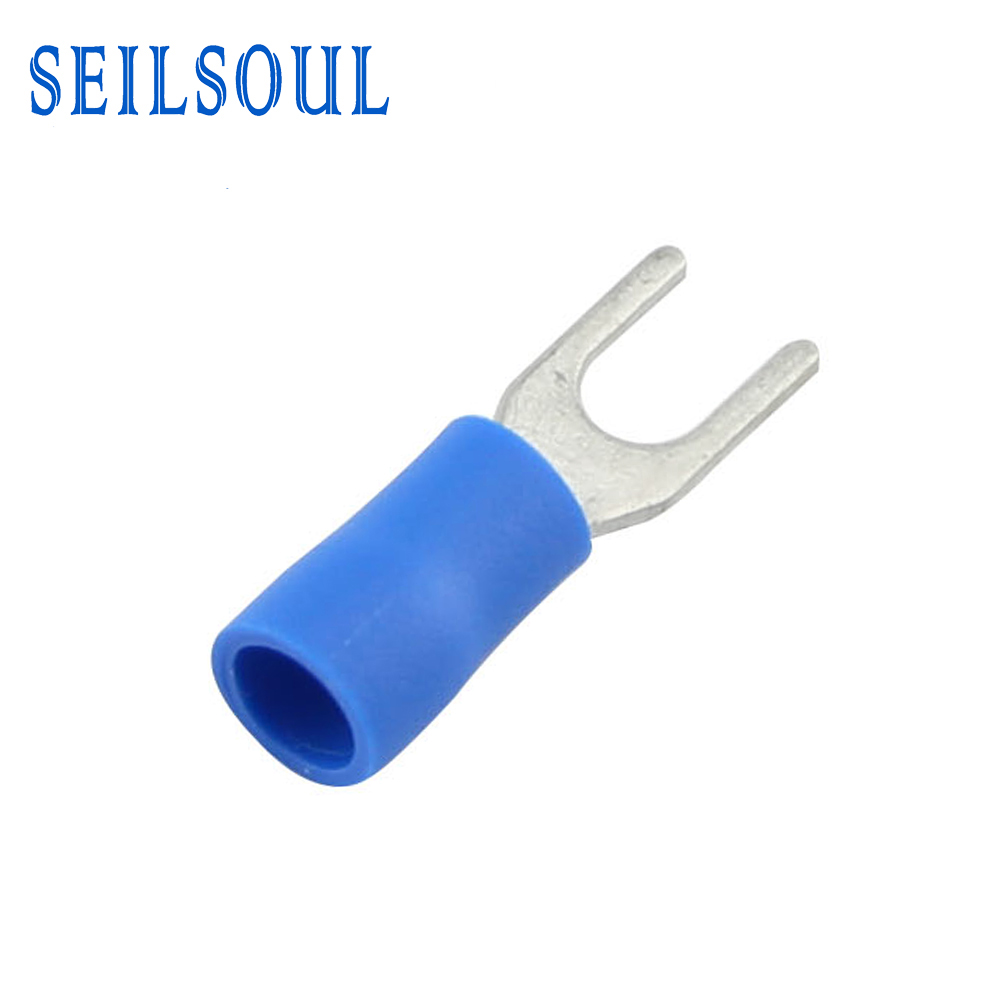

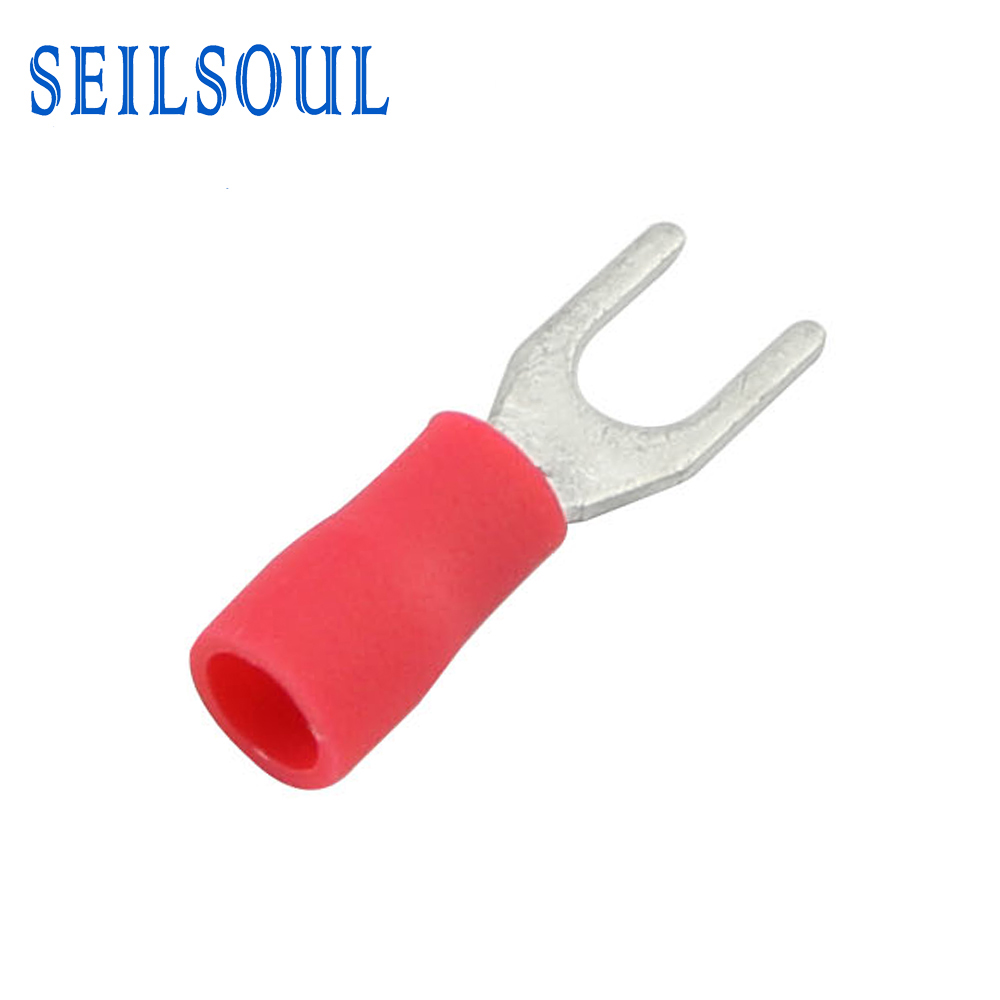

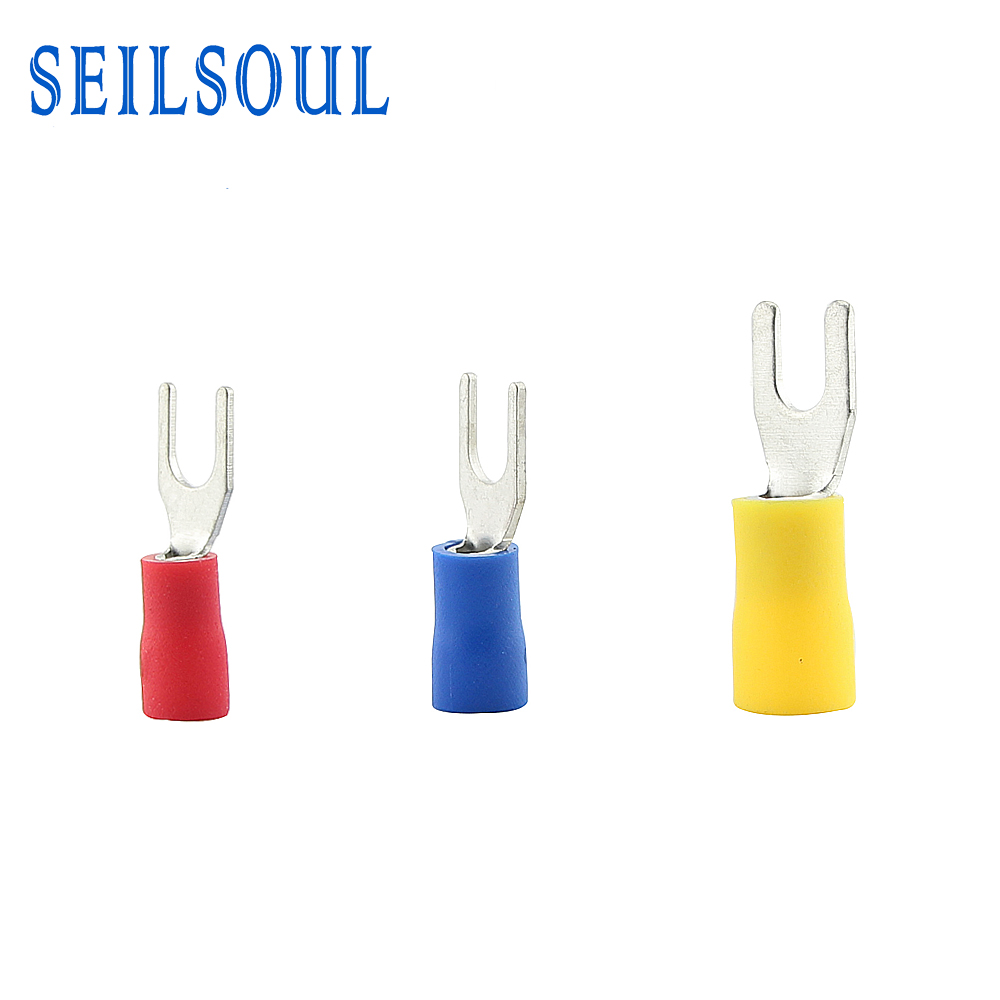

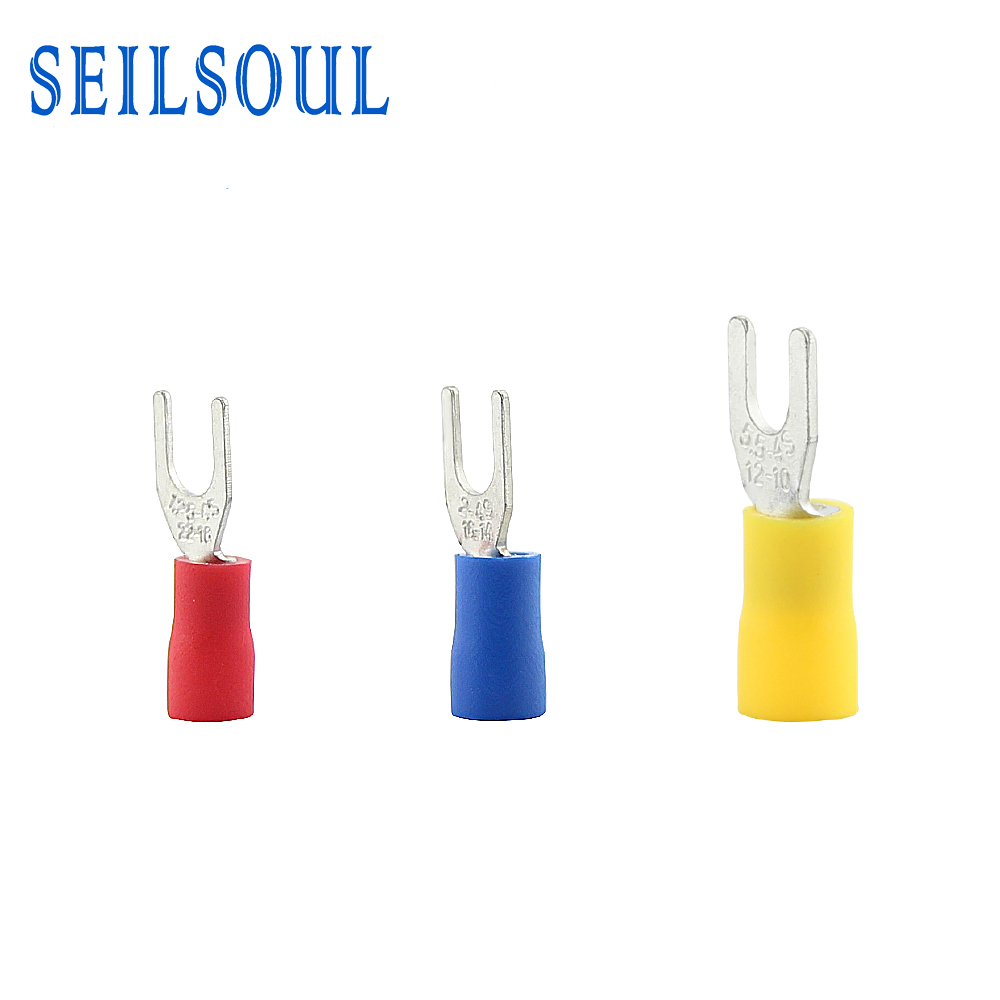

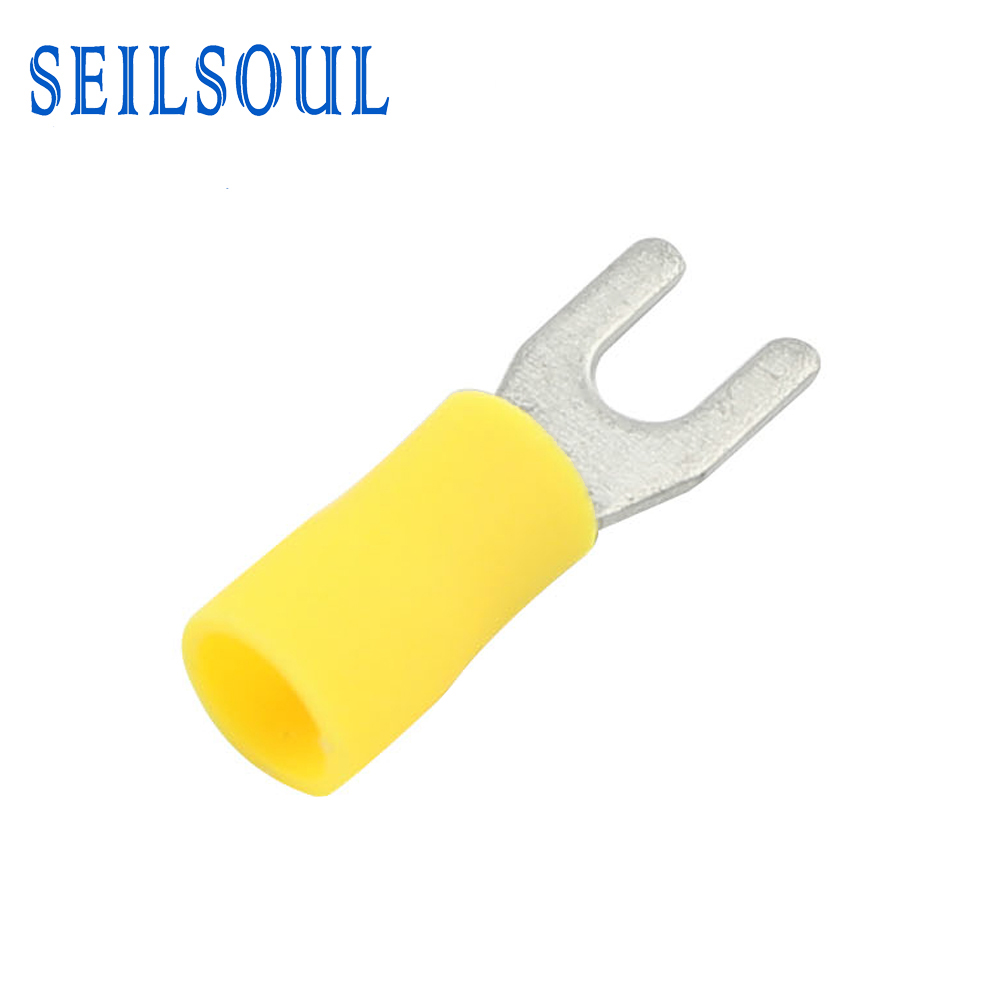

Pre-insulated Fork Terminal Wire Connector Electrical Crimp Terminal - SV

Model Number: SV
Insulation:Vinyl
Terminal Material:Copper
Plating:Tin
Availability:
Quantity:
  • SV

  • Seilsoul

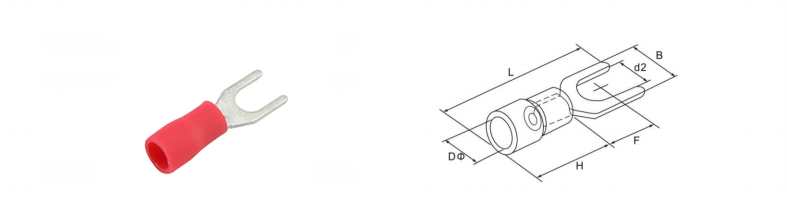

Seilsoul Pre-insulated Fork Terminal


Insulation:Vinyl          Terminal Material:Copper          Plating:Tin

Cable size:0.5-1.5mm²(A.W.G.22-16)          Max Current:Imax=19A          Thickness:0.7mm

Item NO. USA Bolt No. Bolt dia d2(mm) Dimension(mm) Color
B F L H
SV1.25-3 #4 3.2 5.7 6.5 21.2 10 4.3
red
SV1.25-3.5S #6 3.7 5.7 6.5 21.2
SV1.25-3.5L #6 3.7 6.4 6.5 21.2
SV1.25-4S #8 4.3 6.4 6.5 21.2
SV1.25-4M #8 4.3 7.2 6.5 21.2
SV1.25-4L #8 4.3 8.1 6.5 21.2
SV1.25-5S #10 5.3 8.1 6.5 21.2
SV1.25-5L #10 5.3 9.5 6.5 21.2
SV1.25-6S 1/4 6.5 9.5 6.5 21.2
SV1.25-6L 1/4 6.5 12 11 27.2
SV1.25-8 5/16 8.5 14 12 29.2




Insulation:Vinyl          Terminal Material:Copper          Plating:Tin

Cable size:1.5-2.5mm²(A.W.G.16-14)          Max Current:Imax=27A          Thickness:0.8mm

Item NO. USA Bolt No. Bolt dia d2(mm) Dimension(mm) Color
B F L H
SV2-3 #4 3.2 5.7 6.5 21.2 10 4.9
blue
SV2-3.5S #6 3.7 5.7 6.5 21.2
SV2-3.5L #6 3.7 6.4 6.5 21.2
SV2-4S #8 4.3 6.4 6.5 21.2
SV2-4M #8 4.3 7.2 6.5 21.2
SV2-4L #8 4.3 8.1 6.5 21.2
SV2-5S #10 5.3 8.1 6.5 21.2
SV2-5L #10 5.3 9.5 6.5 21.2
SV2-6S 1/4 6.5 9.5 6.5 21.2
SV2-6L 1/4 6.5 12 11 27.2
SV2-8 5/16 8.5 14 12.5 29.2




Insulation:Vinyl          Terminal Material:Copper          Plating:Tin

Cable size:2.5-4.0mm²(A.W.G.14-12)          Max Current:Imax=37A          Thickness:1.0mm

Item NO. USA Bolt No. Bolt dia d2(mm) Dimension(mm) Color
B F L H
SV3.5-3.5 #6 3.7 8 7 25.3 13 6.3
black
SV3.5-4 #8 4.3 8 7 25.3
SV3.5-5S #10 5.3 8 7 25.3
SV3.5-6S 1/4 6.5 9 7.5 26.5
SV3.5-6 1/4 6.5 12 12.1 28.5



Insulation:Vinyl          Terminal Material:Copper          Plating:Tin

Cable size:4.0-6.0mm²(A.W.G.12-10)          Max Current:Imax=48A          Thickness:1.0mm

Item NO. USA Bolt No. Bolt dia d2(mm) Dimension(mm) Color
B F L H
SV5.5-3.5 #6 3.7 8.3 7.5 26.5 13 6.7
yellow
SV5.5-4S #8 4.3 8.3 7.5 26.5
SV5.5-4L #8 4.3 9 7.5 26.5
SV5.5-5 #10 5.3 9 7.5 26.5
SV5.5-6S 1/4 6.5 9 7.5 26.5
SV5.5-6L 1/4 6.5 12 12 32.5
SV5.5-8 5/16 8.5 14 11.5 31.5



Insulation:Vinyl          Terminal Material:Copper          Plating:Tin

Cable size:6.0-10.0mm²(A.W.G.8)          Max Current:Imax=62A          Thickness:1.2mm

Item NO. USA Bolt No. Bolt dia d2(mm) Dimension(mm) Color
B F L H
SV8-4 #8 4.3 8 7.2 30 15.5 8.5
red
SV8-5 #10 5.3 10.8 7.2 30
SV8-6 1/4 6.5 14.5 7.2 30
SV8-8 5/16 8.5 11 10.7 35




Insulation:Vinyl          Terminal Material:Copper          Plating:Tin

Cable size:10.0-16.0mm²(A.W.G.6)          Max Current:Imax=88A          Thickness:1.5mm

Item NO. USA Bolt No. Bolt dia d2(mm) Dimension(mm) Color
B F L H
SV14-5 #10 5.3 11 10.7 35.2 21.1 10.5
blue
SV14-6 1/4 6.5 11 10.7 35.2
SV14-8 5/16 8.5 14 10.7 35.2



                                                                                                      Click here for more model information →



company profile



Seilsoul is a production and trading company specializing in the production of terminal. The company has more than ten years of production experience in the field of terminal. Our products have been exported to more than 30 countries in recent years. Exported to Amazon, Alibaba and other international related trading websites, and received unanimous praise from customers and the industry.

Our company has a complete production chain and hundreds of production categories. The company adheres to the production and management philosophy of “Quality First, Service First, Credit First”. We strictly control the quality of our products. We have our professional quality inspection department to conduct professional and strict screening for every product delivered to our customers. Our products are certified by international CE.

FDD (8)

FDD


MDD (4)

MDD


FDFD (5)

FDFD


RV (4)

RV


BV (2)

BV


MPD (6)

MPD




Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
